Spindle Kit G-Penny Bullet 80mm 2.2kw with VFD & ER20 Collet set - Water Cooled (Huanyang VFD) - Europe

Spindle Kit 80mm 2.2kw with VFD & ER20 Collet set - Water Cooled (by G-Penny)

The 2.2kW Water Cooled Spindle Kit is the most powerful spindle we offer, a must have for more demanding CNC users. The 2.2kW Spindle and VFD Inverter in this kit are high quality from a well respected brand; G-Penny – an industry leader in CNC machining. This Spindle is a heavy duty router, and due to the water cooled system, is comfortably capable of running for a long time without stopping, which makes it ideal for long, complicated jobs or applications.

Kit Includes:

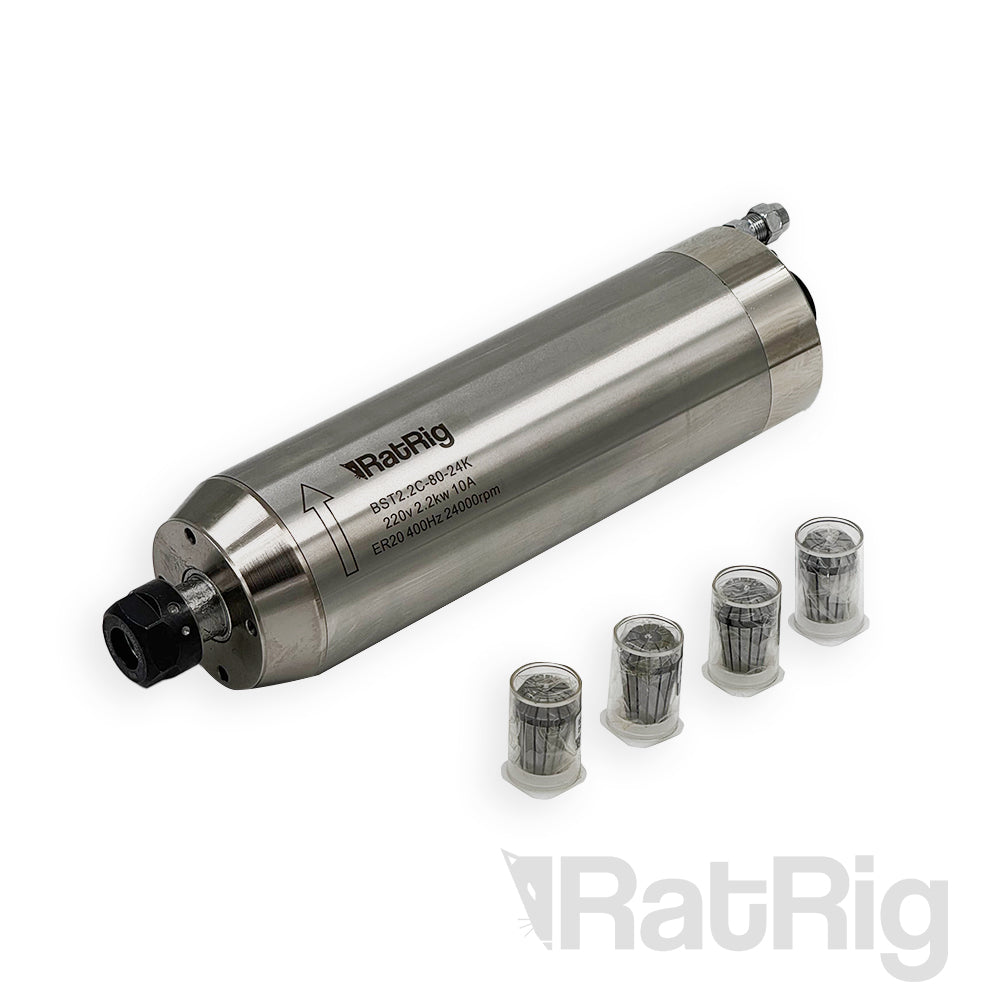

• 1x 2.2KW Water Cooled Spindle (80mm diameter) N.W.=5.3kg
• 1x VFD Inverter
• 1x 75W Water Pump
• 1x Cable 4 Core Shielded ( 5 meters)
• 1x Water Pipes (5 meters)
• 4x ER20 collet chuck (1/8, 4, 6, 8)

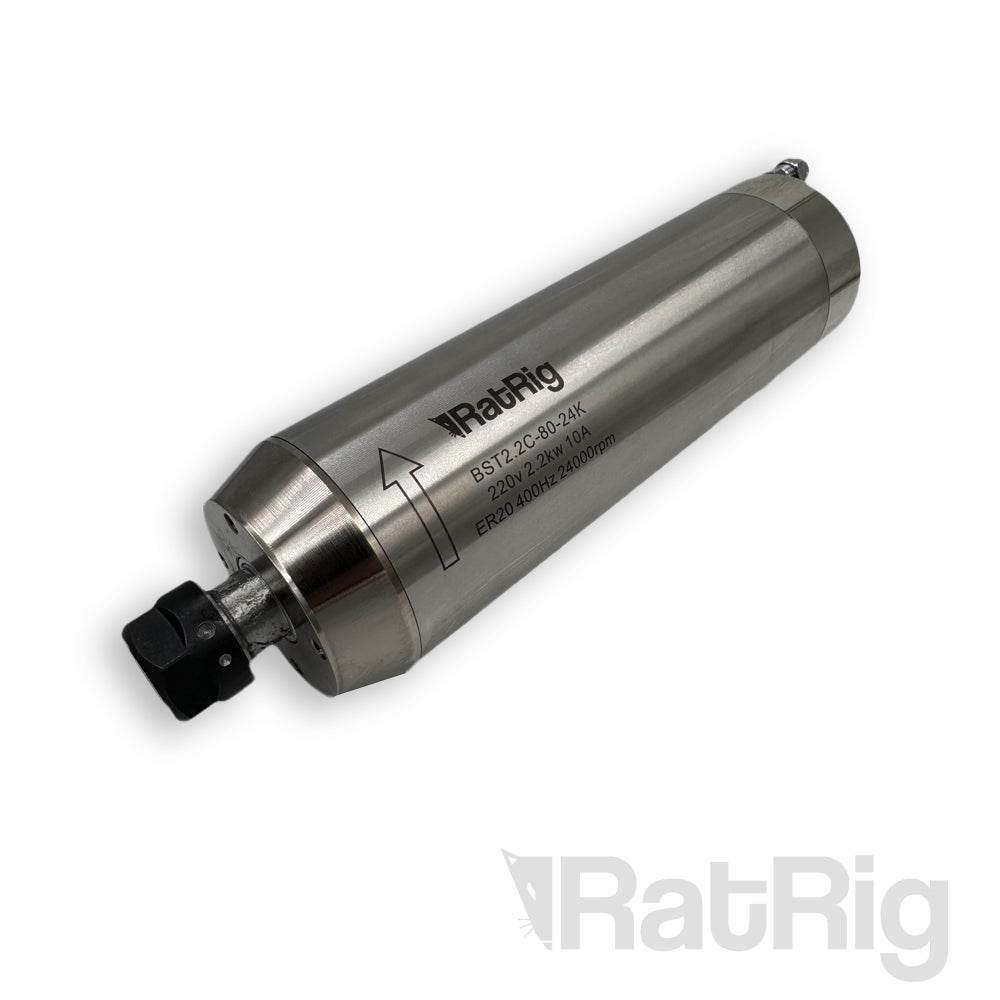

Spindle Specifications:
• Brand: G-Penny
• Spindle Size: ø 80 x 230mm (Diameter: 80mm x Length: 230mm)
• Material: The cover is made of 304 stainless steel, and the water jack is high compression casting aluminium tube, red copper coil
• Power: 2.2 kW
• Voltage: 220 V
• AC Rated Current: 10A
• Frequency: 0-400 Hz
• Max Rotation Speed: 24000 R/min
• Water Cooled Run out: 0.01 mm
• Bearing: P4 DT 7005 bearings (2pcs) , P4 DT 7002 bearing (2pc)
• Coaxality: 0.025 mm (2.5 microns)
• Collet: ER20 Collets
• Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4
• Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectively.
• Number 4 is connected to the mains earth wire
• Lubrication: High temperature resistance grease lubrication

VFD Specifications
• Brand: Huanyang
• Input Voltage: 220 V
• AC Output Voltage: 208-240 V
• AC Input Frequency: 47 / 63 Hz
• Output Frequency: 0-50 Hz / 0-400 Hz
• Power: 2.2 kW
• Input Phase: 1 or 3 phase
• Output Phase: 3 phase
• Control Mode: V/F, Sensor-less Vector Control (SVC), Torque control
• Speed Adjusting Range: 1:100 (SVC)
• Carrier Frequency: 1 kHz – 15.0 kHz
• Automatic Voltage Regulation Function (AVR)

Water Pump Specifications
• Brand: Haiguan
• Model: HG-460
• Voltage: 220-240V
• Frequency: 60Hz/50Hz
• Power: 75 W
• Protection: IPX8 Defined as immersion in over 1 meter of water
• H-Max (Lift height): 3.2 m
• Max Flow Rate: 3200 L/H

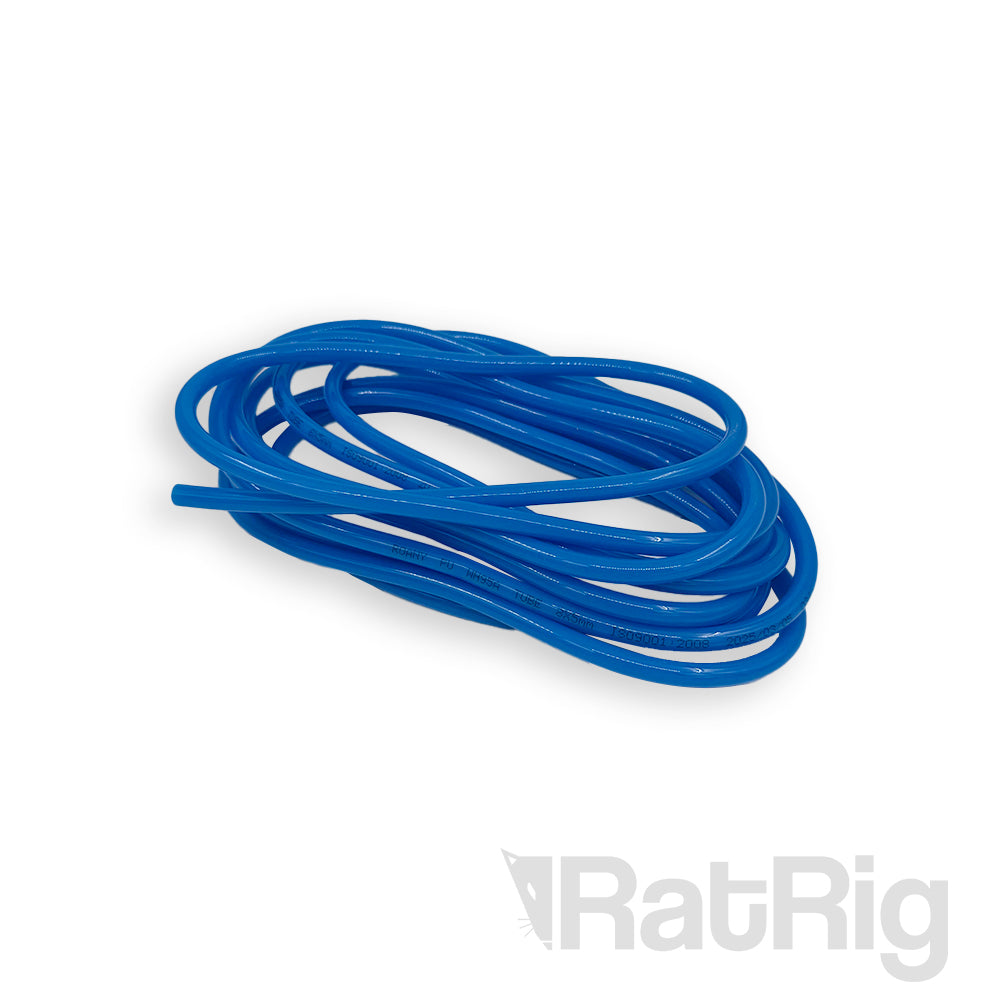

Hose Specifications
• Material: Polyurethane
• Colour: Blue
• Internal diameter: 5 mm
• External diameter: 8 mm
• Length: 5 m
