Rat Rig Universal CNC Electronics Enclosure Kit
Choose options
Rat Rig Universal Electronics Enclosure

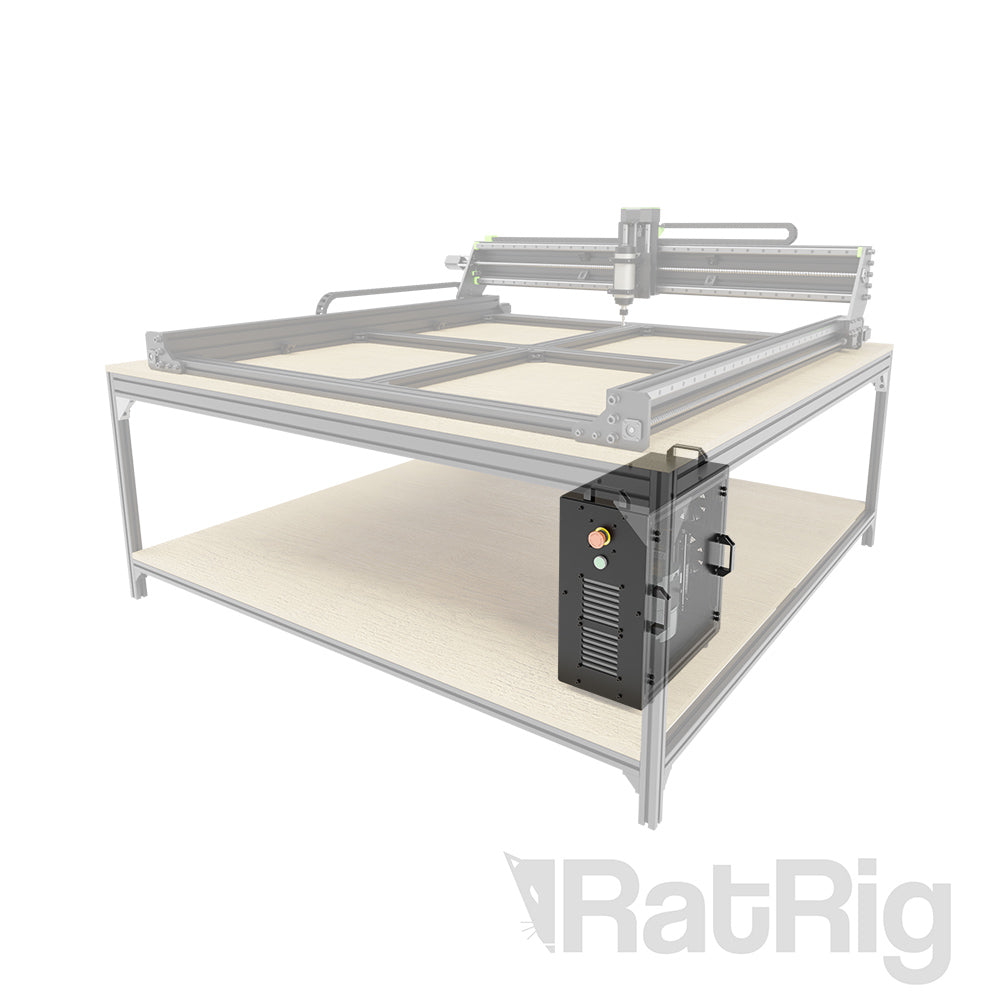

An actively cooled box to house all the electronics for your CNC machine, Rat Rig or otherwise.
Flexible mounting options
The Universal Electronics Enclosure supports all our preset electronic bundles intermediate and advanced with pre-drilled plates for Rodent, AXBB, Scylla, and Flexi-HAL controllers.
Intermediate Bundle
The intermediate bundle (not included) assembled inside the Universal Electronics enclosure
Advanced Bundle
The advanced bundle (not included) assembled inside the Universal Electronics enclosure
The plates being made of aluminum, not only provide grounding for the entire enclosure but also offer flexibility for custom setups. If you prefer using your own components, the kit includes three long DIN rails, allowing you to mount your electronics with freedom and flexibility.
Safety Features

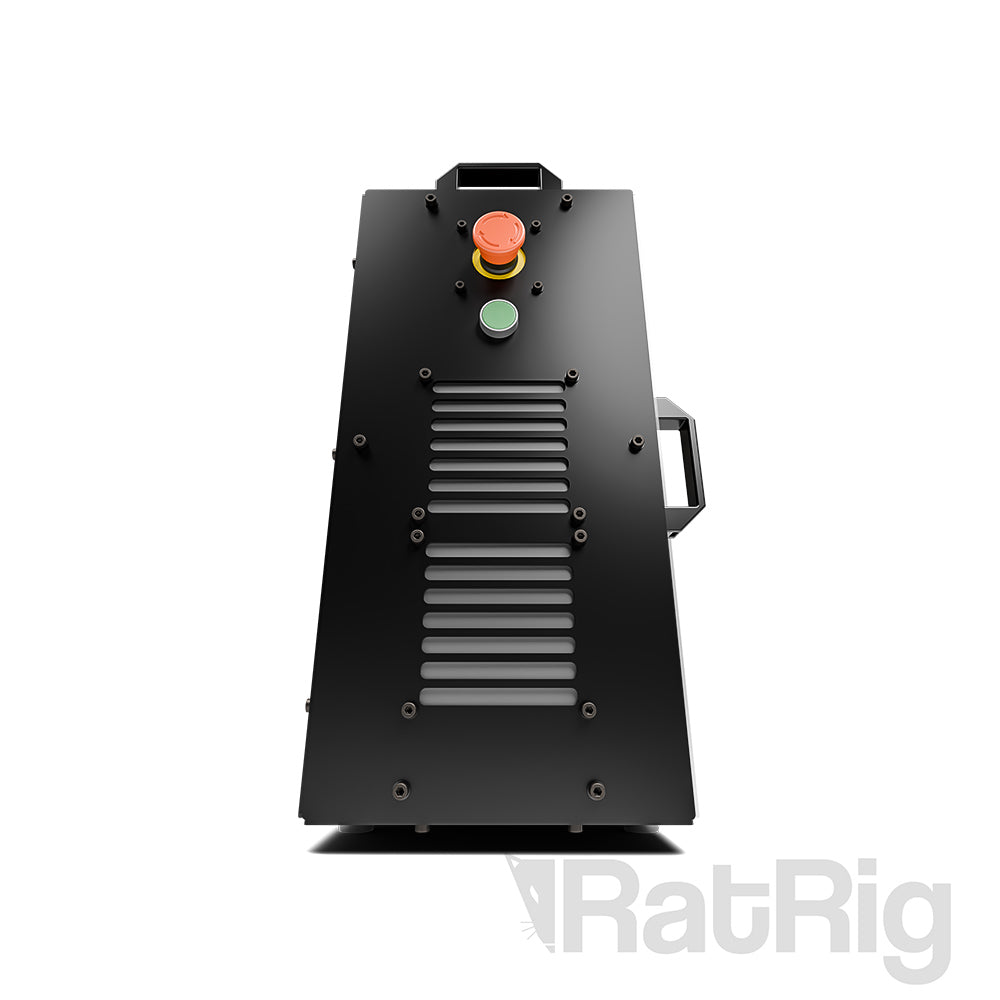

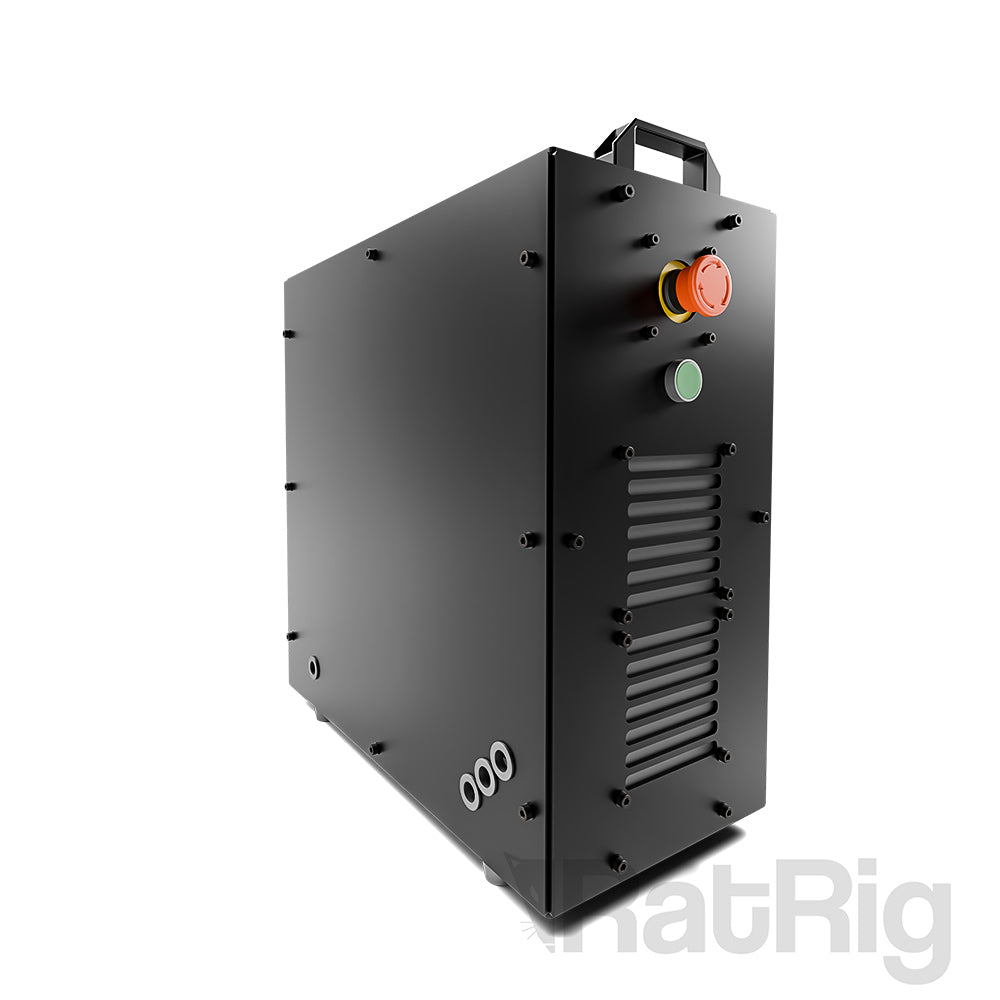

Features an IEC socket with a safety fuse, start/stop buttons, and a contactor that isolates the 220V circuit, protecting the user from high voltage and preventing automatic restart after power loss.
Cable management
AC and DC circuits are fully separated for safety, with industry standard color coded wires for ground, neutral, and live. Modular PTfix distribution blocks, also color-coded, are used to organize cables neatly.

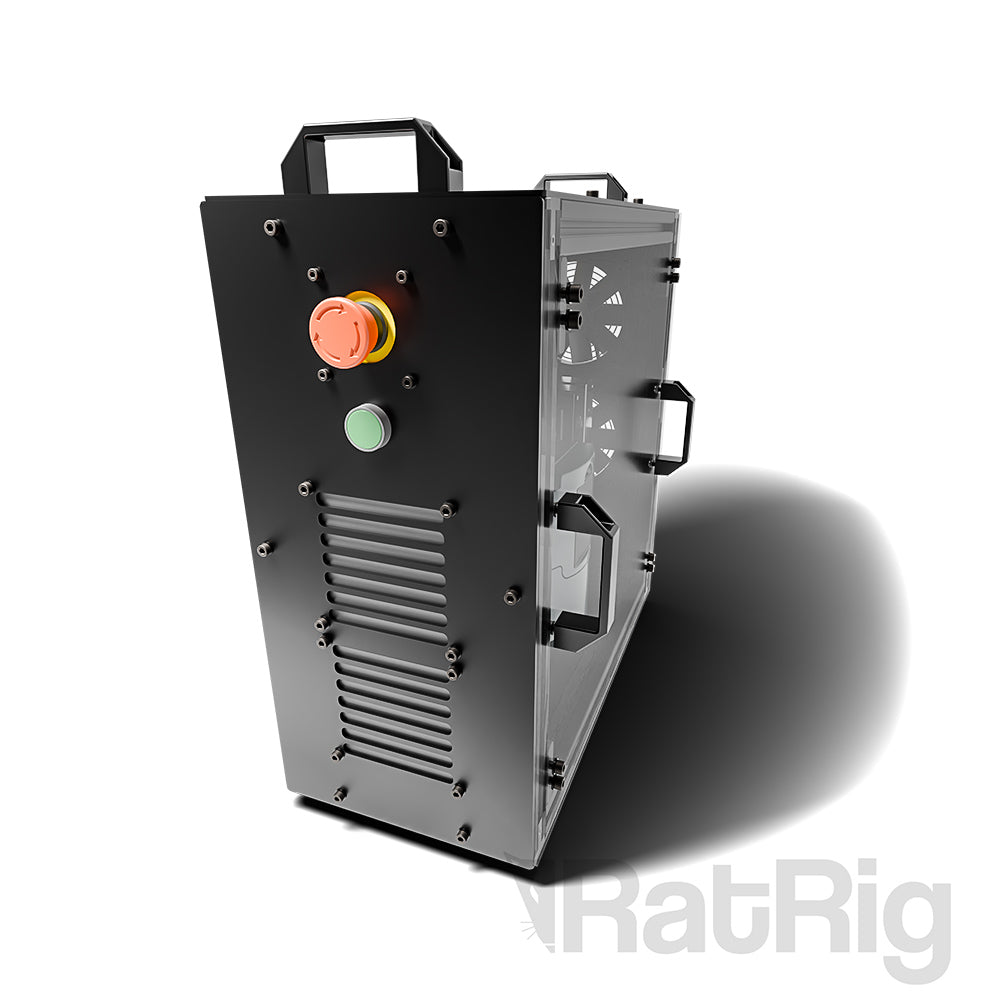

Magnetically latched door

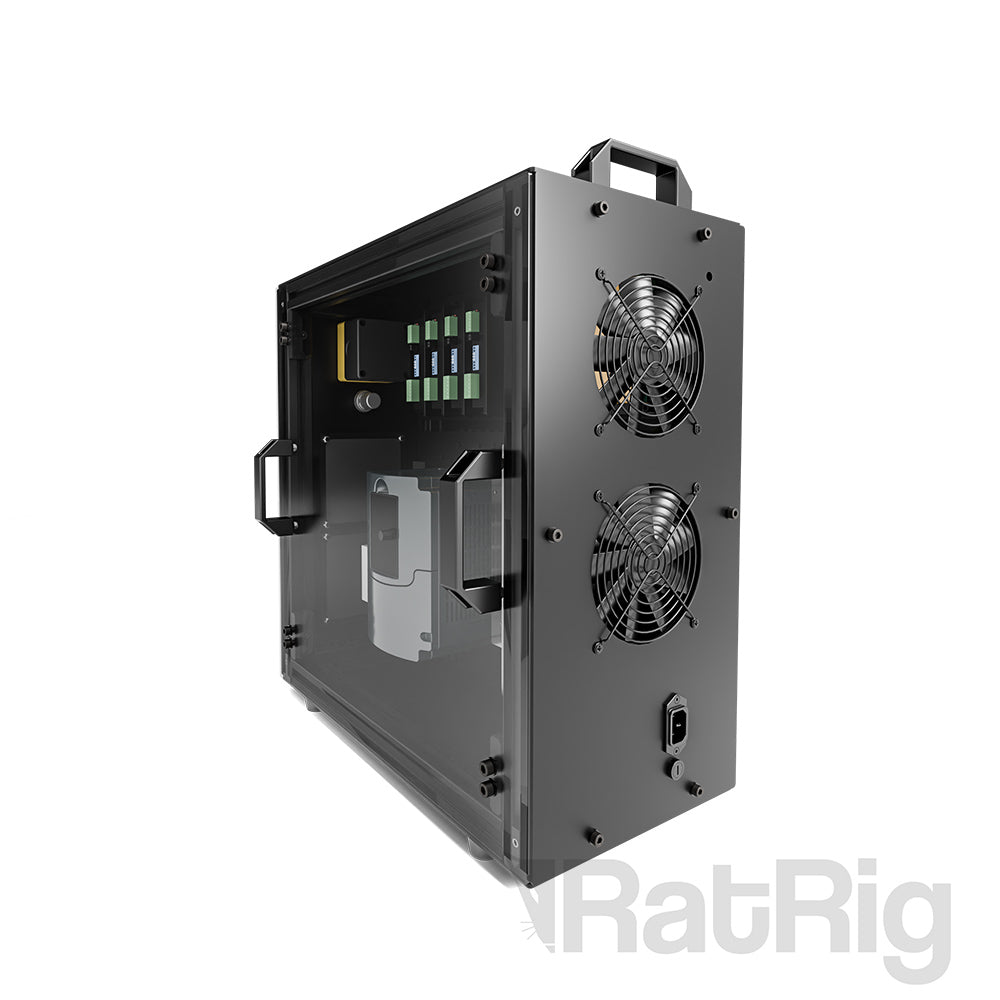

The Universal Electronics Enclosure includes all panels, with one featuring a magnetically latched door. It also comes with two 120mm fans and a dust filter to keep electronics cool and prevent dust buildup inside.
Product walkthrough
For more details about the Rat Rig Universal CNC Electronics Enclosure check the video below.
INCLUDED:
- All necessary panels, profiles, brackets, fasteners, door handles, door foam seals, panels rubber seals and magnets to assemble the CNC enclosure.
Enclosure Dimensions
External dimensions:
- Width: 499.5mm
- Height: 519mm
- Depth: 268.5mm
Usable space inside enclosure
- Width: 400mm
- Height: 400mm
- Depth: 182mm
Build Guide
An on-line step-by-step build manual with detailed images, diagrams and instructions is available here.
CAD Models
Rat Rig Universal CNC Electronics Enclosure - Empty
Rat Rig Universal CNC Electronics Enclosure - DIN Rail
Rat Rig Universal CNC Electronics Enclosure - Intermediate
Rat Rig Universal CNC Electronics Enclosure - Advanced
