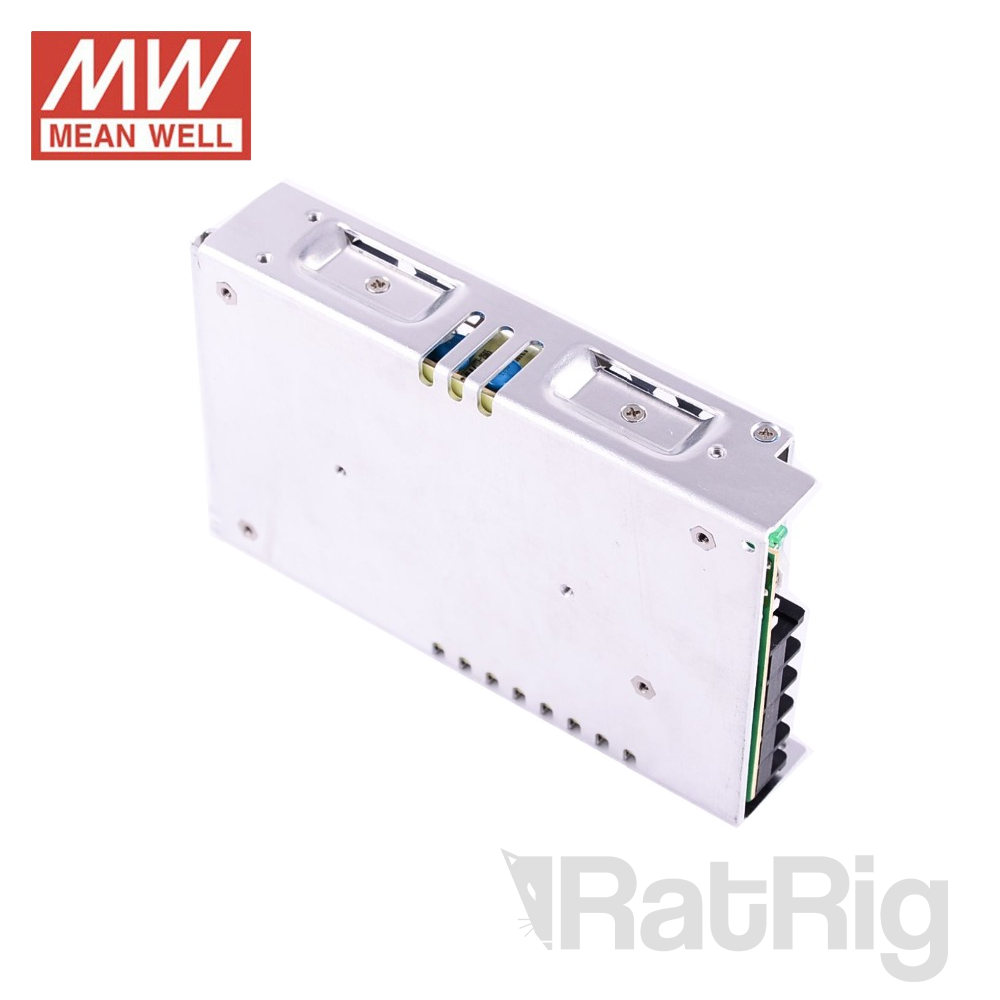

Power Supply - Meanwell RSP 75W 24V

The Mean Well RSP-75-24 is a low profile, single output, enclosed type, switching power supply. It features a remote ON/OFF control, short circuit, overload, over voltage and over temperature protection. Applications include industrial automation system, mechanical and electrical equipment, household appliance, instruments, or any systems that require 1U low profile installations.

Features:
- 30mm low profile design
- Built-in active PFC function
- High efficiency up to 89%
- Fan-less design, cooling by free air convection
- Protection: Short circuit / Overload / Over voltage
- Built-in constant current limiting circuit
- Remote ON/OFF control
- LED indicator for power on

Specifications:
- Output Voltage: 24VDC
- Rated Output Current: 3.2A
- Current Range: 0-3.2A
- Rated Output Power: 76.8W
- Number of Outputs: 1
- Input Voltage: 85-264VAC
- Working temperature: -25°C - +70°C
- Mounting Type: Chassis Mount
- Package Type: Enclosed
- Dimentions: 159x97x30mm (LxWxH)
- Weight: 440g
