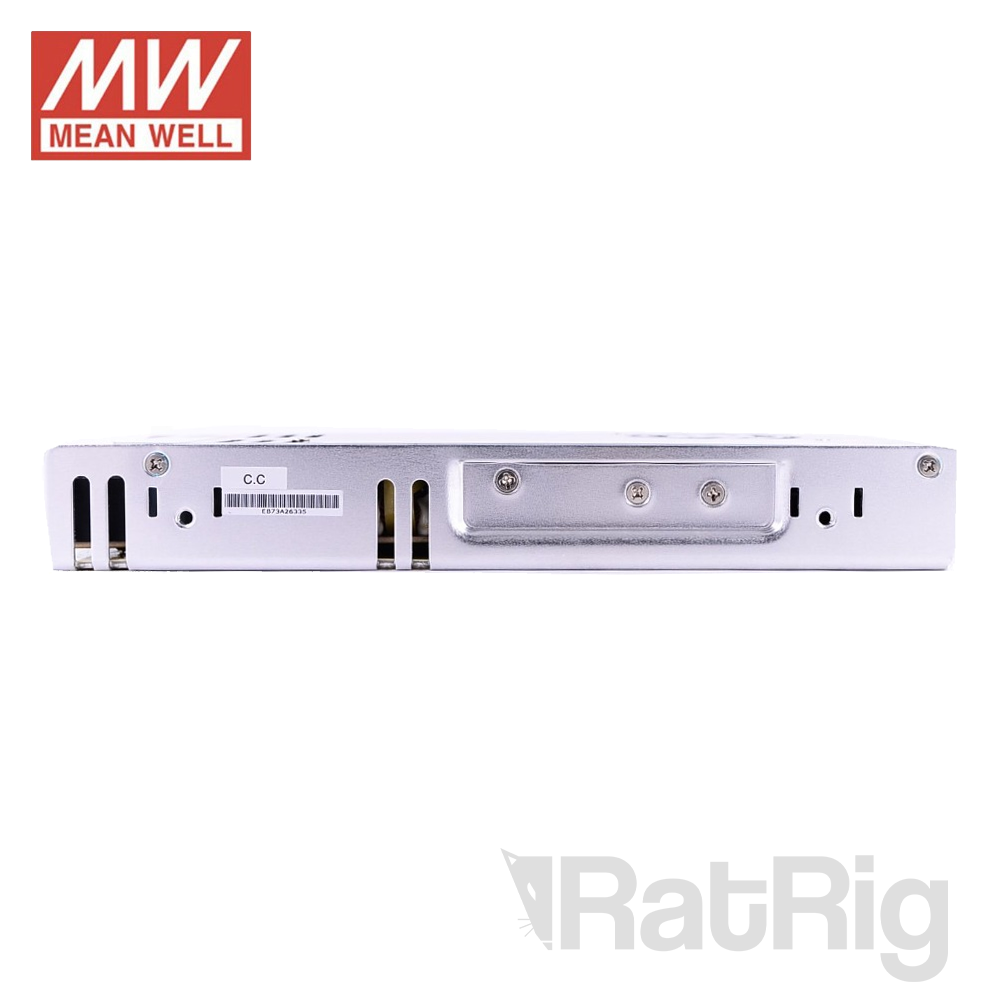

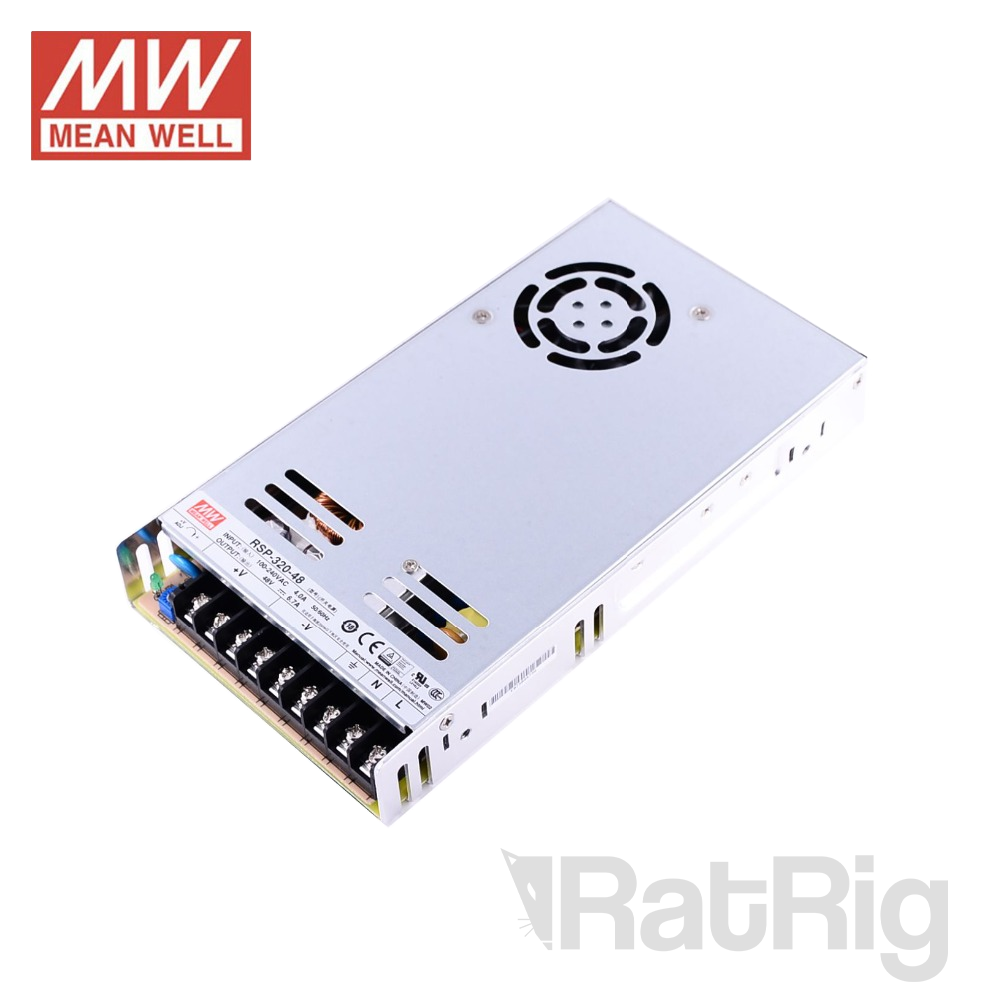

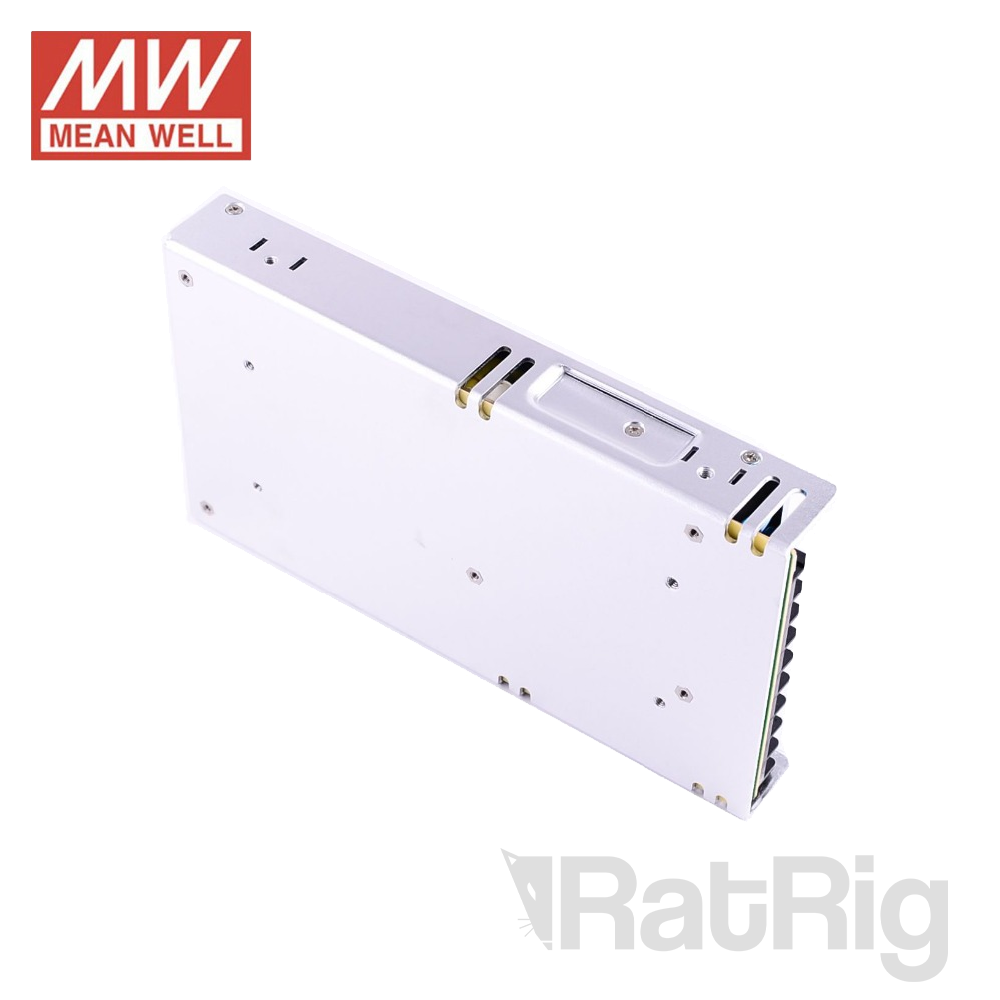

Power Supply - Meanwell RSP 320W 48V

The RSP-320-48 as a 90% of high efficiency and with the PFC function the RSP-320 can be cooled by the built in long life DC fan from -30℃ to +50℃ ambient temperature under full load condition and up to +70℃.
This Power supply comes with protection for short circuit, over load, over voltage and over temperature. The RSP-320-48 is suitable for general industrial control system, mechanical and electrical industry, instruments, LED display, or any systems require low profile installations.

Features:
- 30mm low profile design
- Built-in active PFC function
- High efficiency up to 90%
- Forced air cooling by built-in DC fan
- Protection: Short circuit / Overload / Over voltage / Over temperature
- LED indicator for power on

Specifications:
- Output Voltage: 48VDC
- Rated Output Current: 6.7A
- Current Range: 0-6.7A
- Rated Output Power: 321.6W
- Number of Outputs: 3
- Input Voltage: 88-264VAC
- Working temperature: -30°C - +70°C
- Mounting Type: Chassis Mount
- Package Type: Enclosed
- Dimentions: 215x115x30mm (LxWxH)
- Weight: 900g
