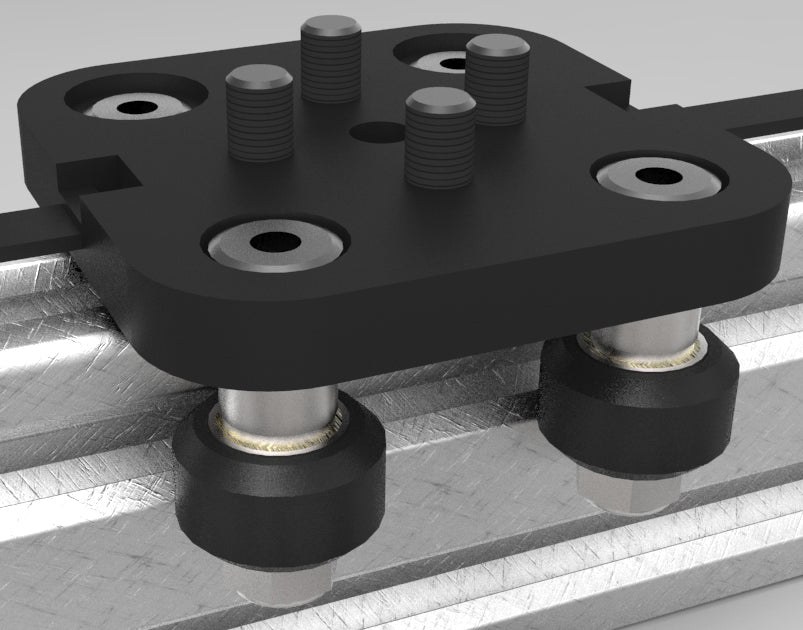

Mini V Gantry Plate

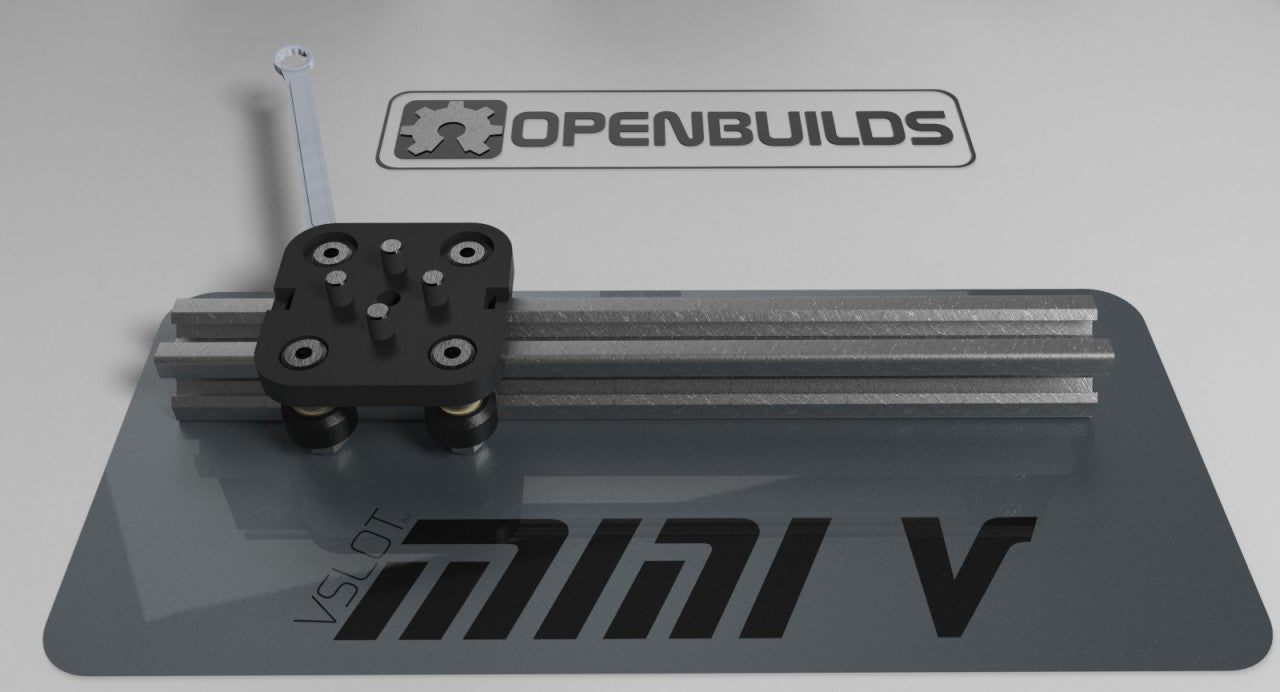

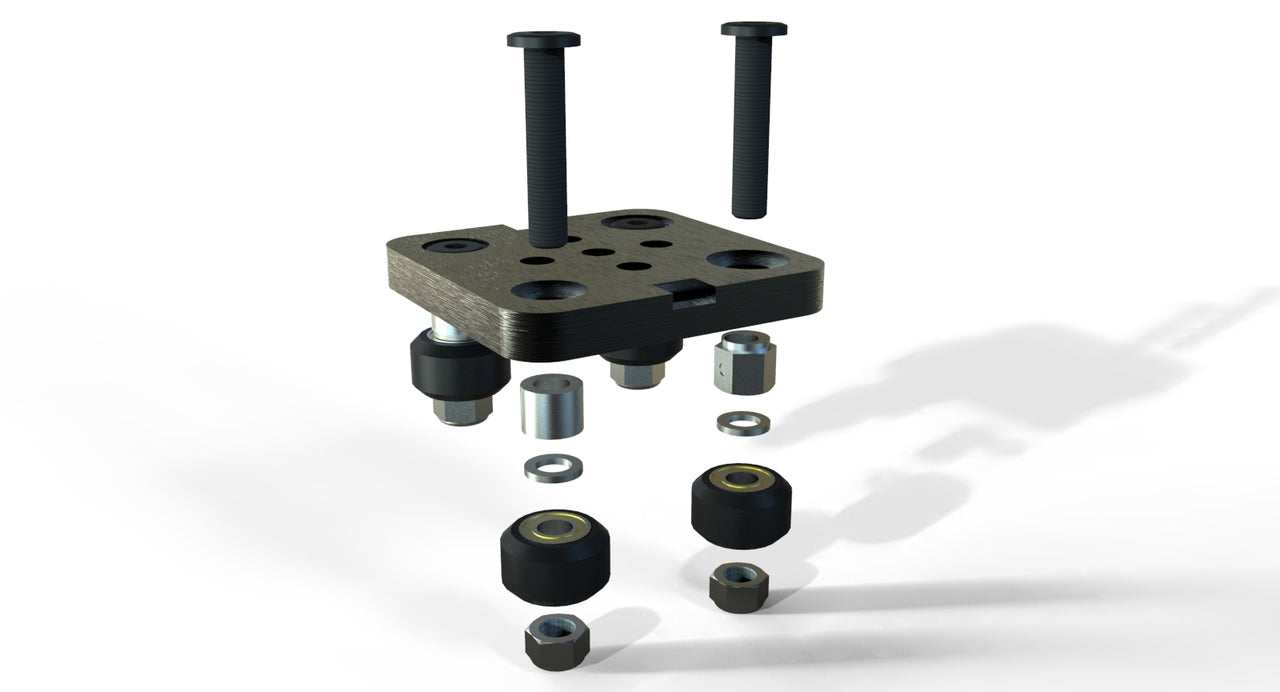

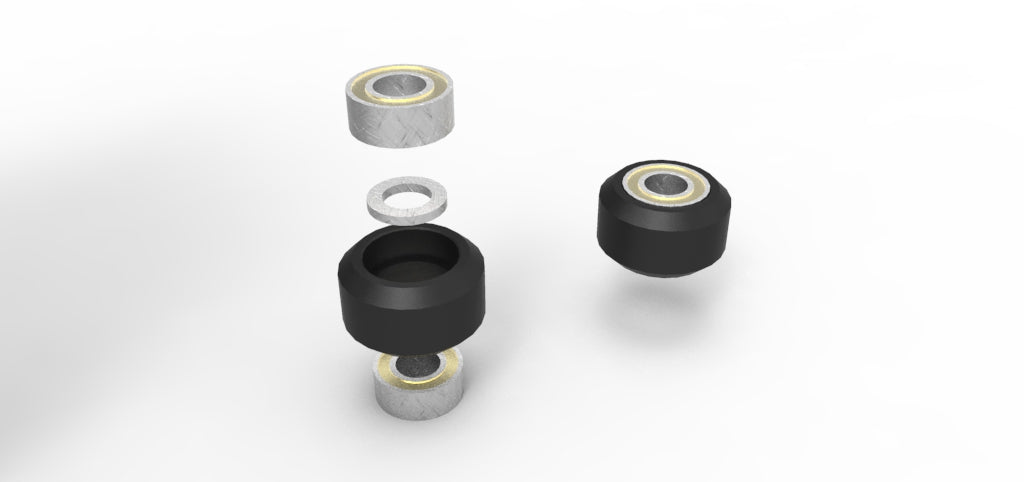

This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.

It's super strong and has a small form factor.

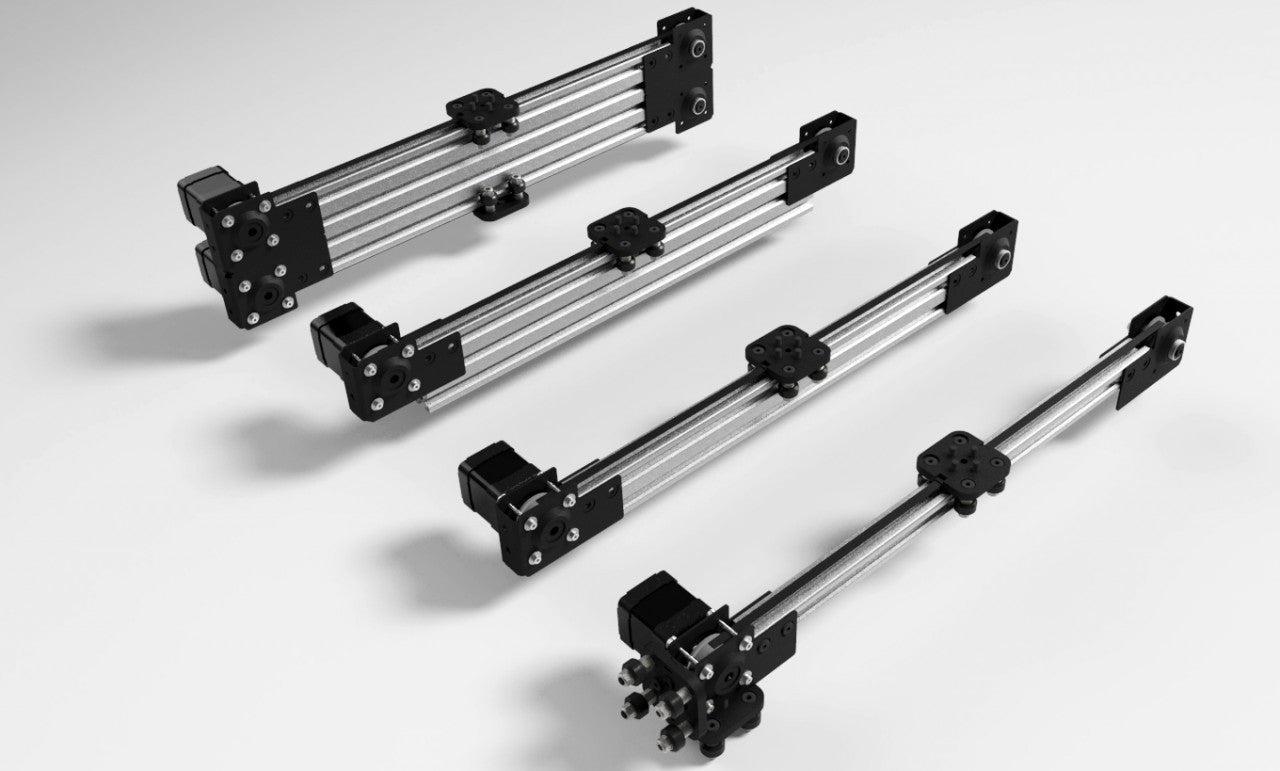

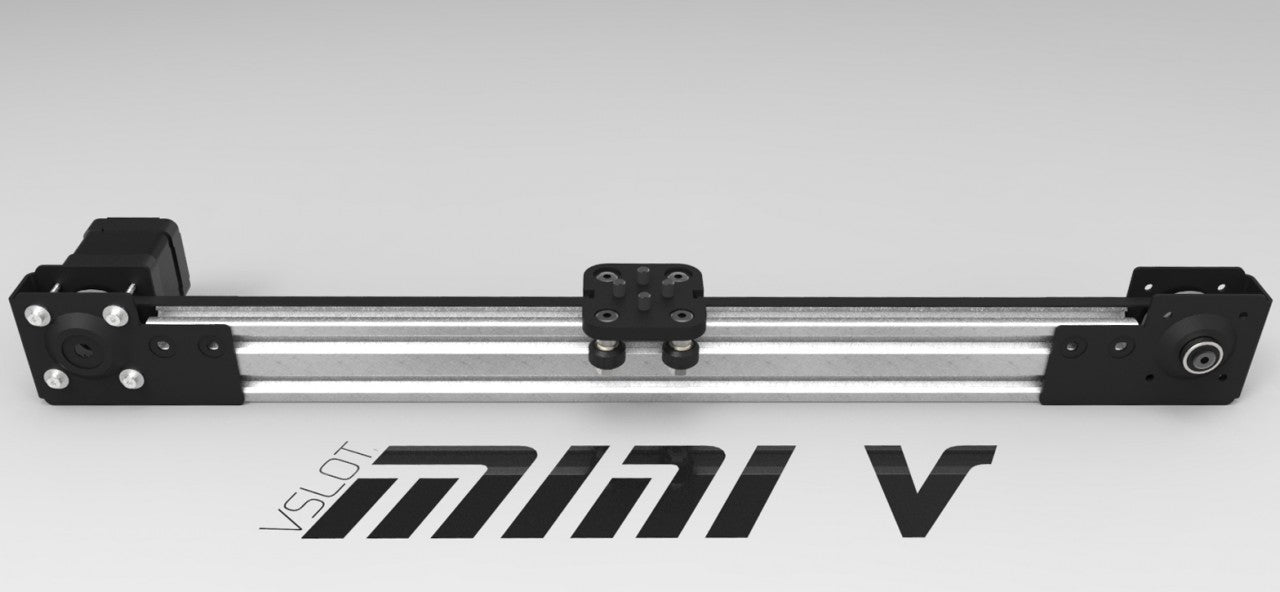

This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!

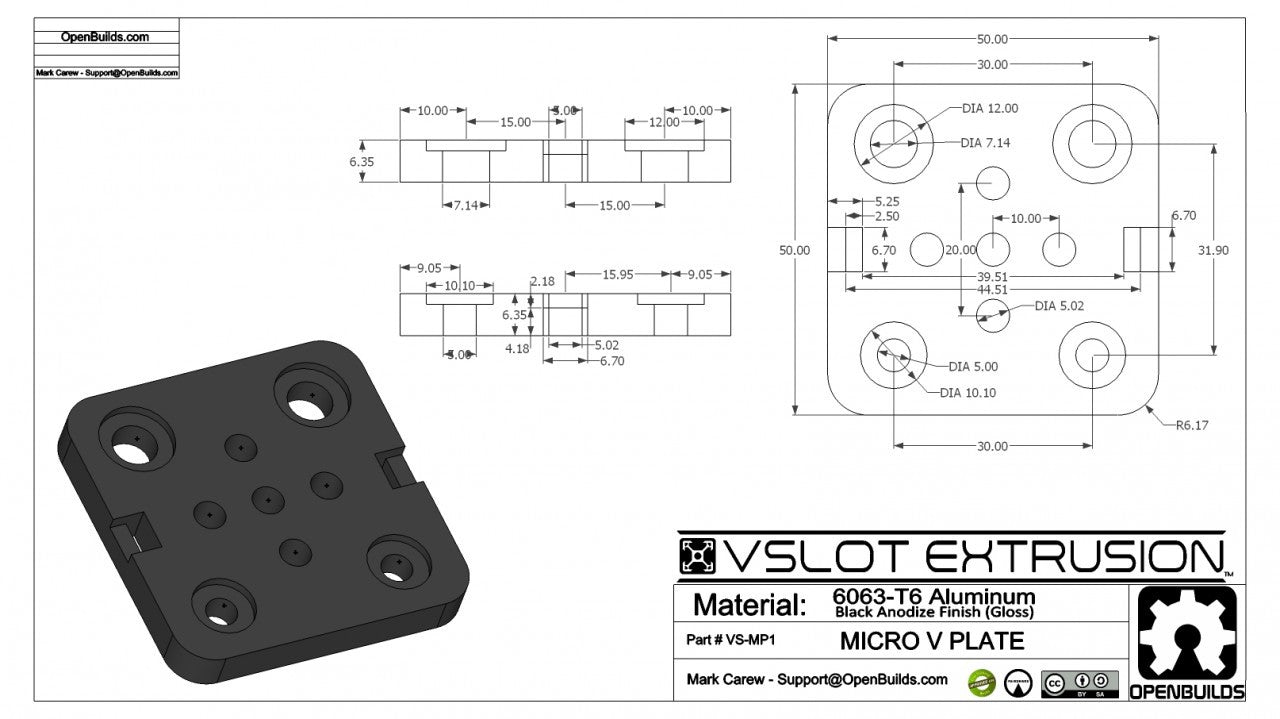

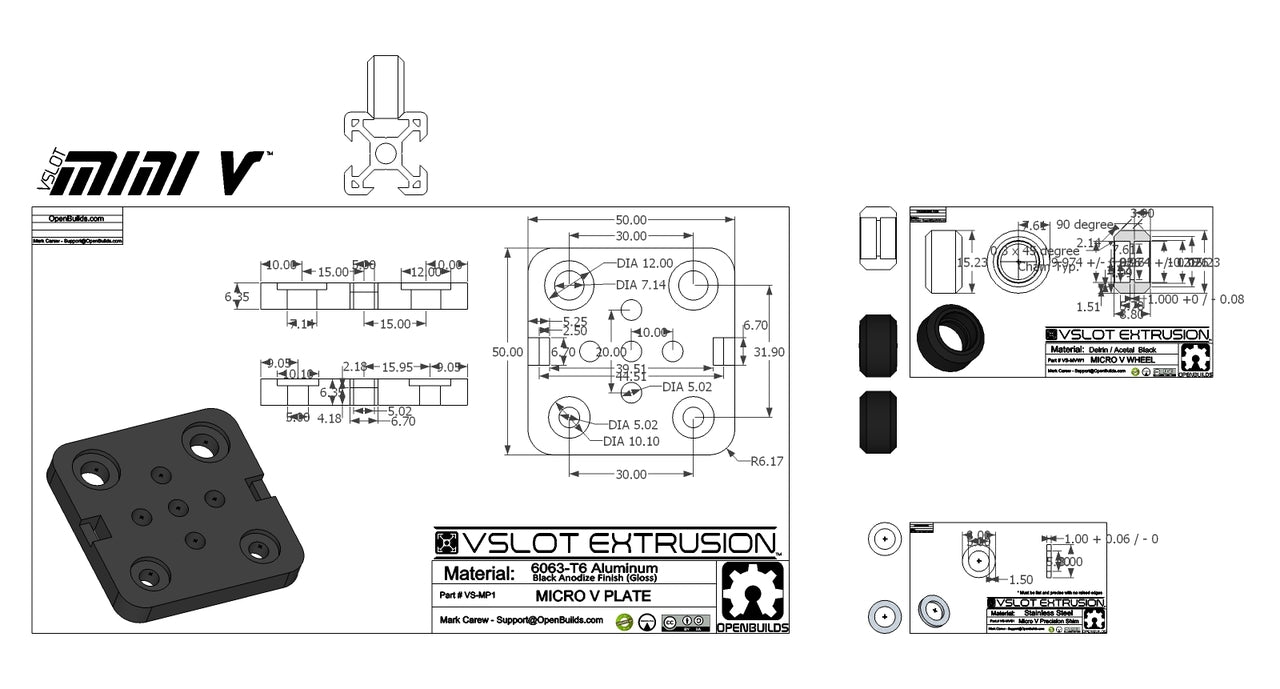

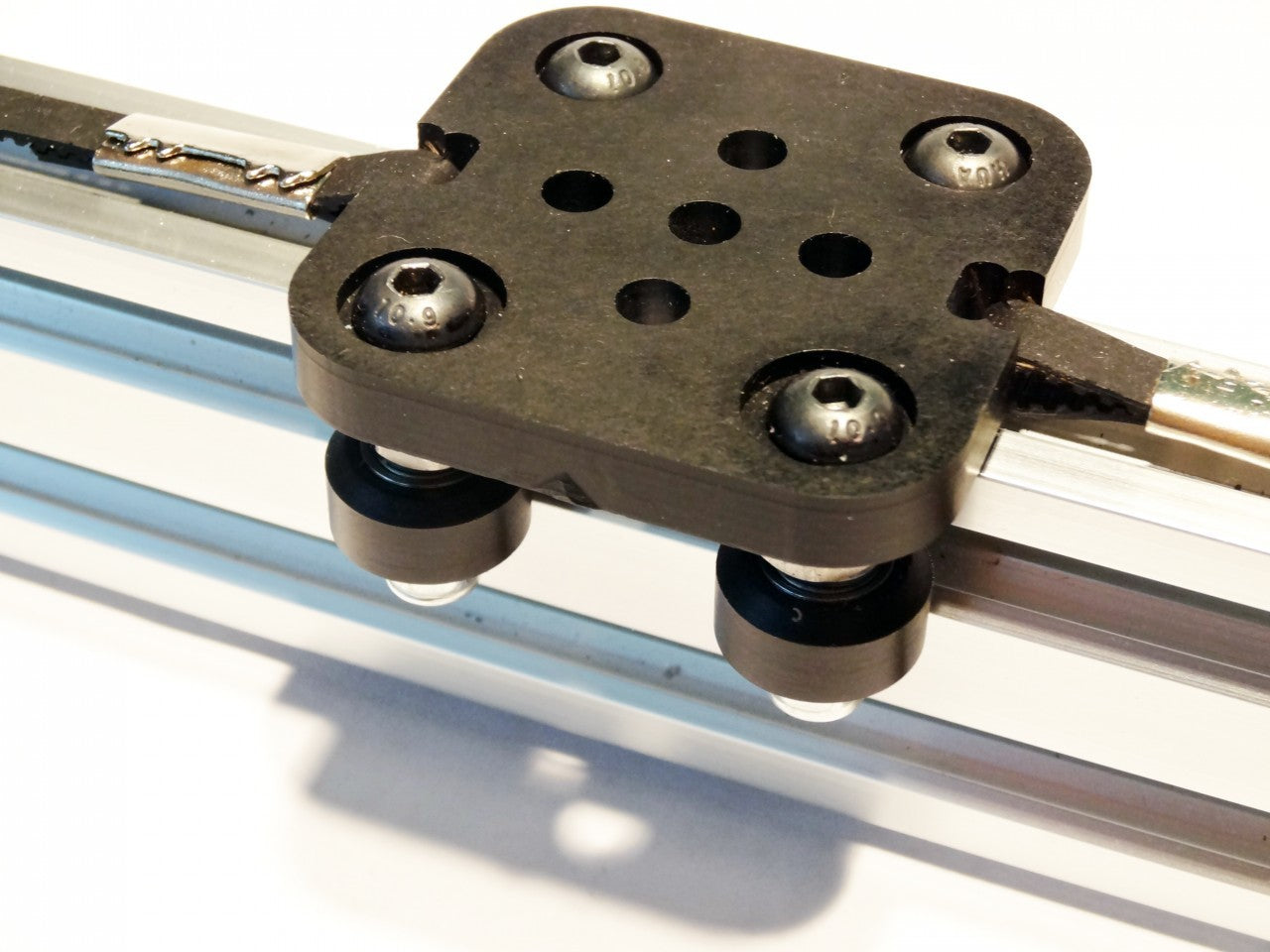

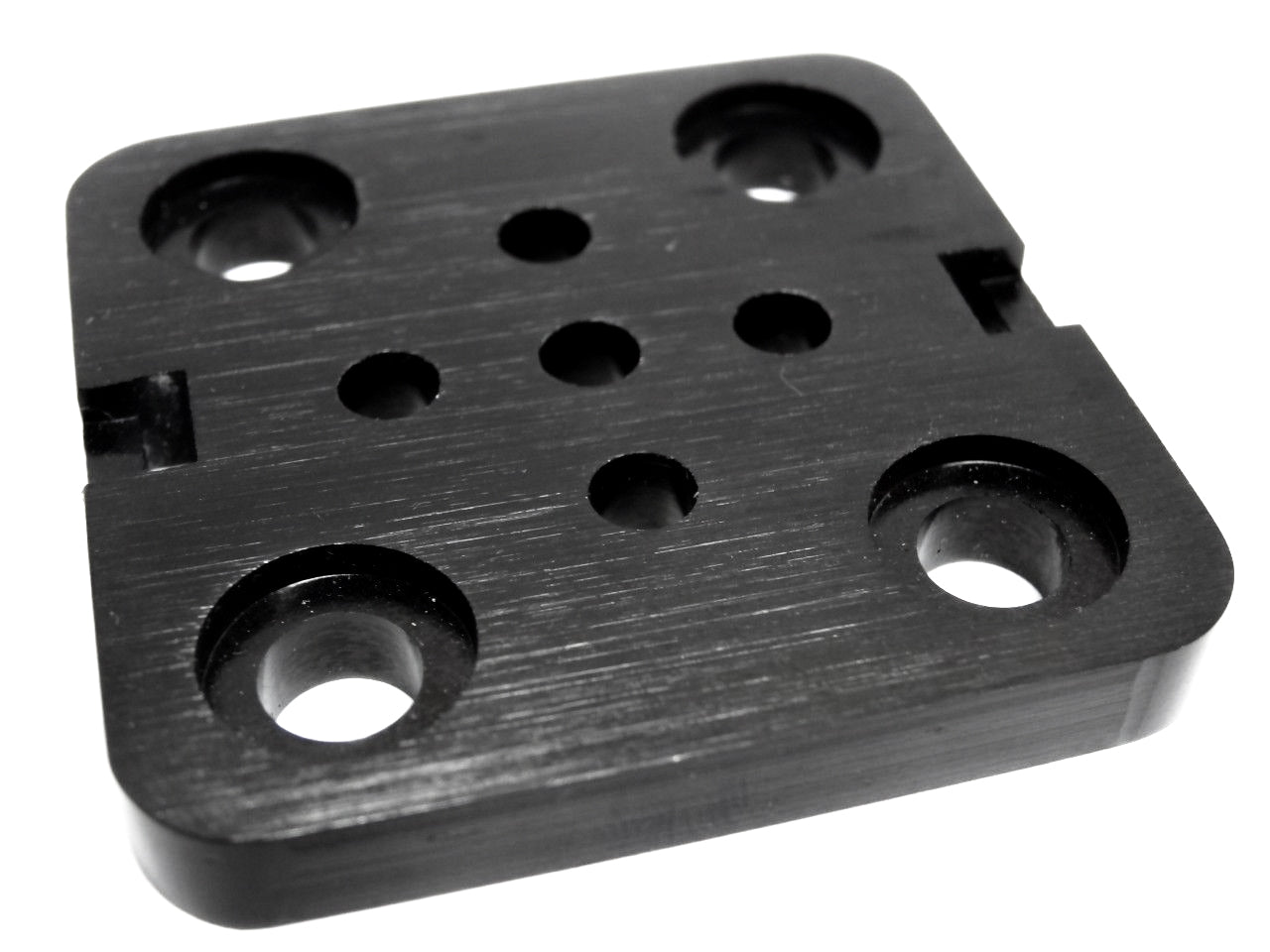

Part Details: - Dimensions: 50 x 50 x 6.35mm 'thick' - 6063-T6 Aluminum Black Anodized Brushed Finish - Belt loop side notched for 1/4" belt - Recessed Screw holed for post flush mount
