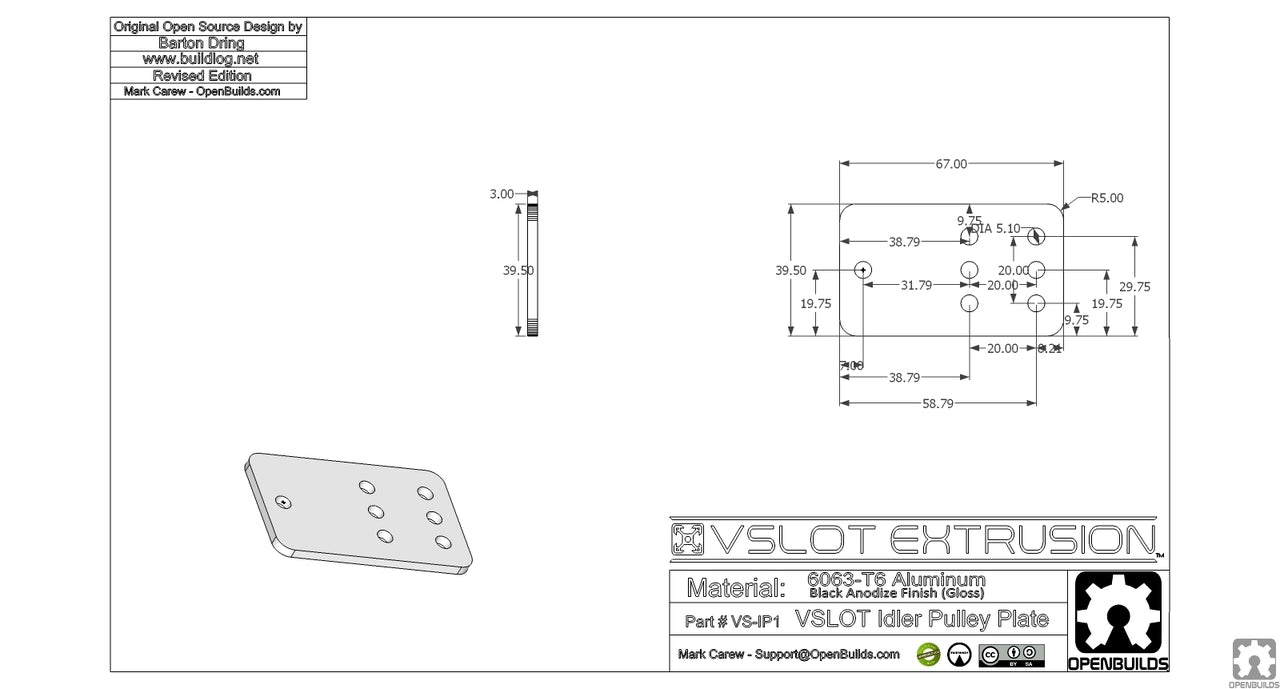

OpenBuilds Idler Pulley Plate

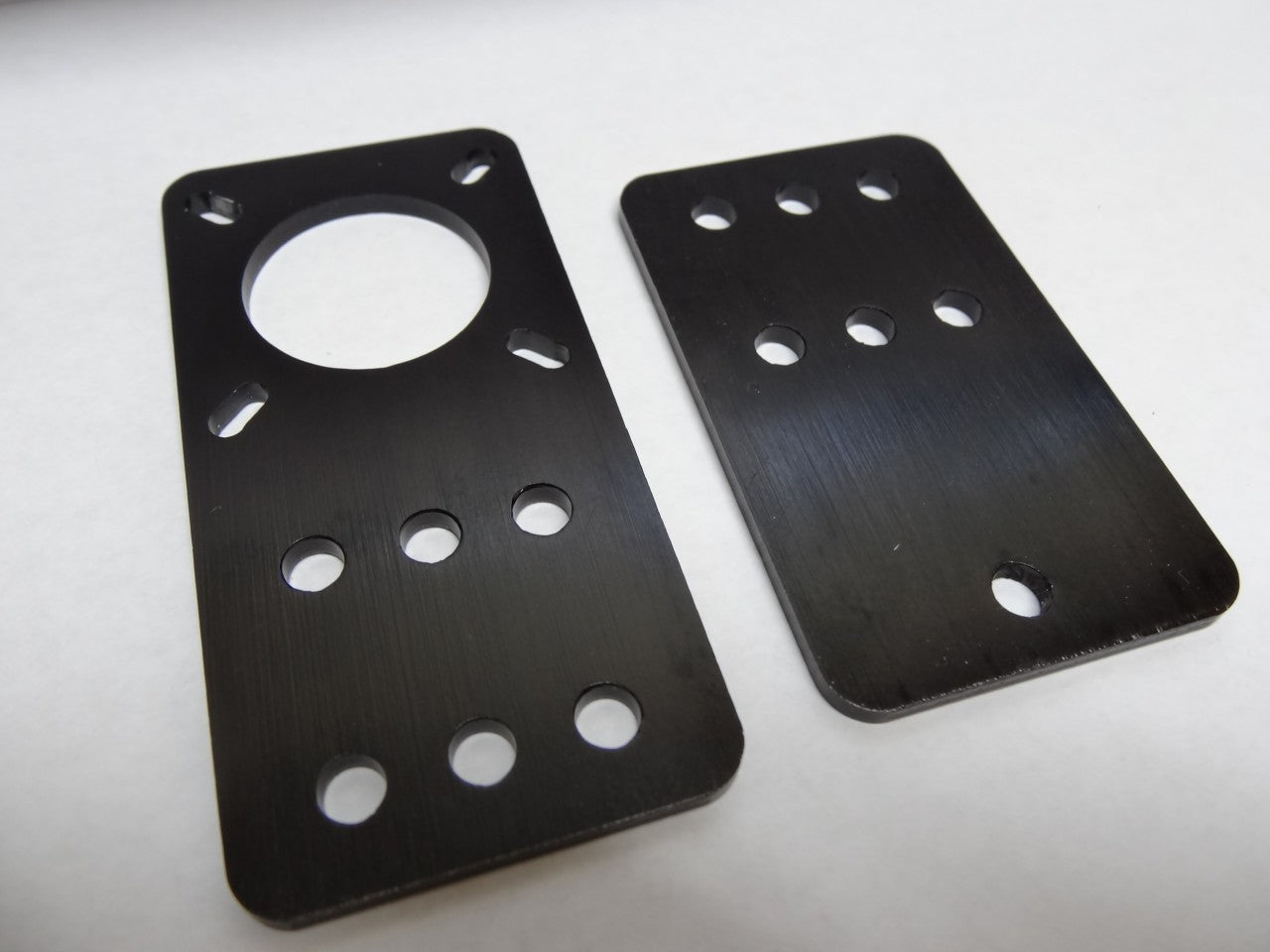

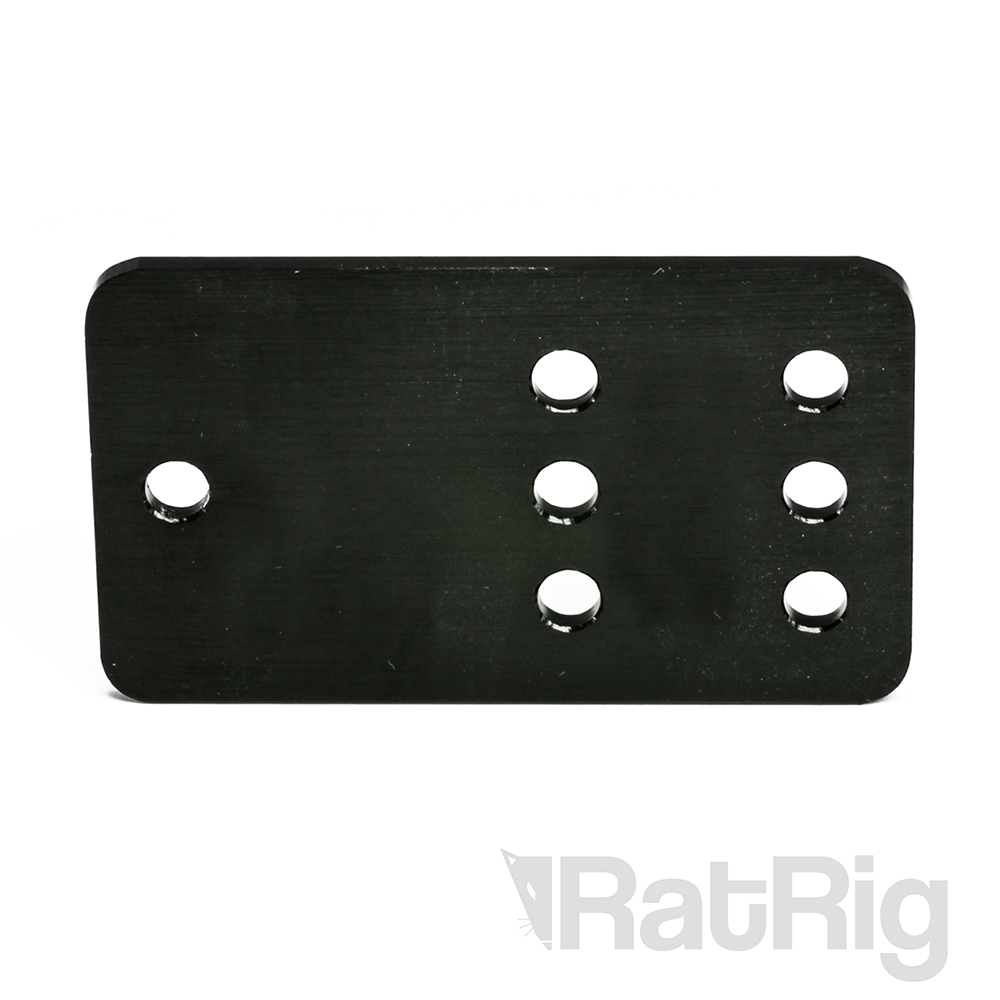

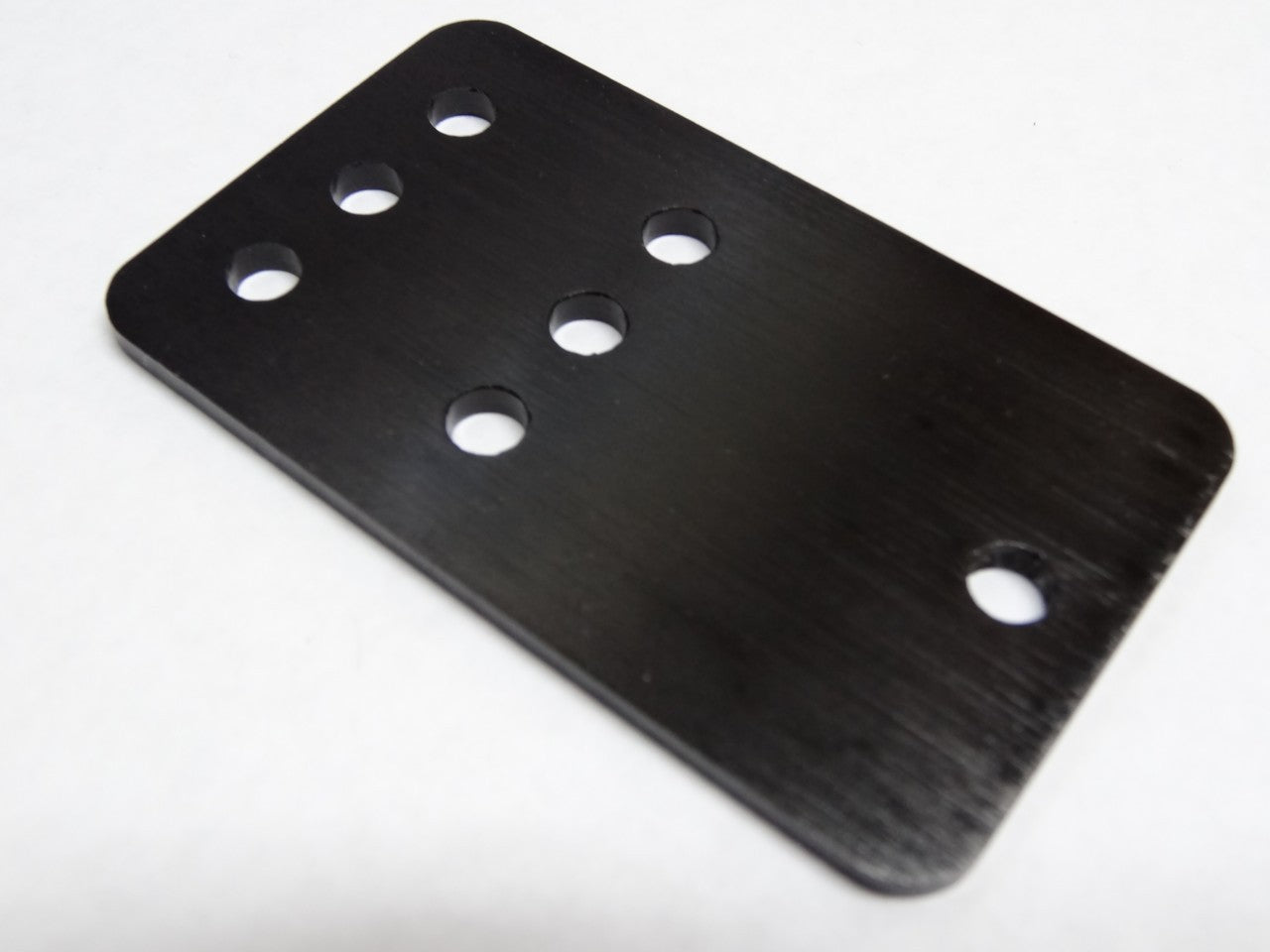

This is the Idler Pulley Plate.  It can be used with V-Slot.

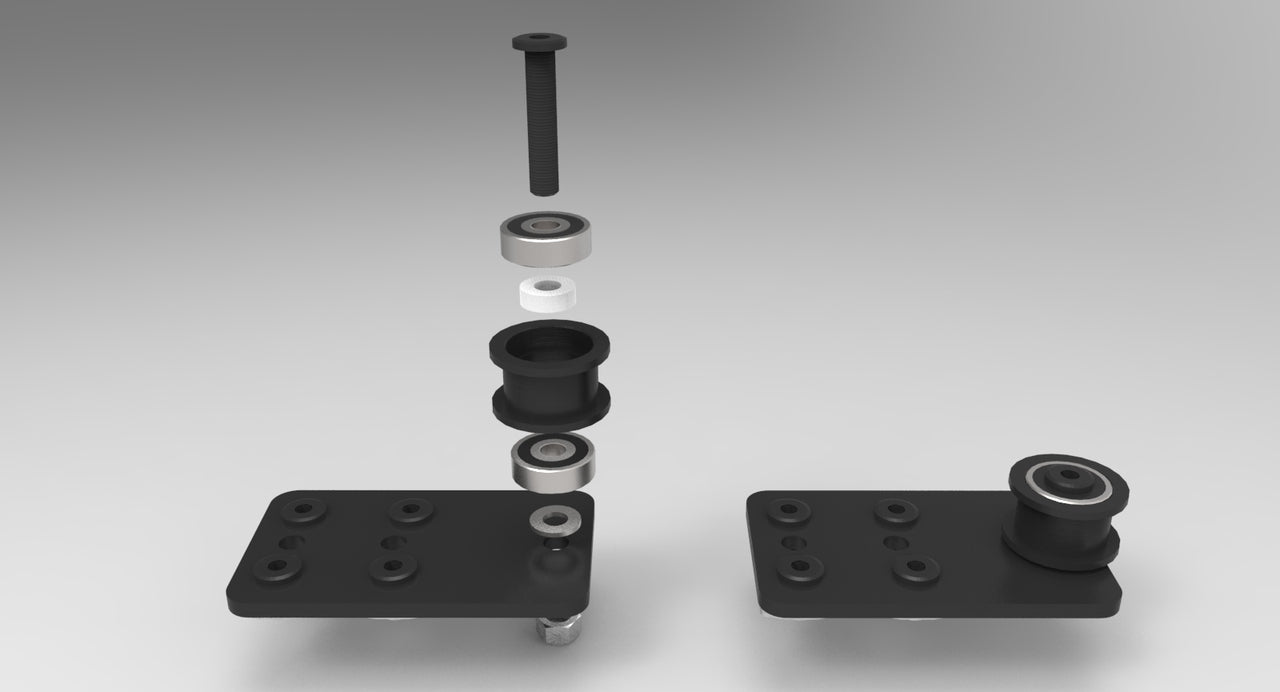

The idea behind this plate is to give you a mountable yet movable plate for your Smooth Idler Pulley.  This works great as it allows you to easily tension your belt.

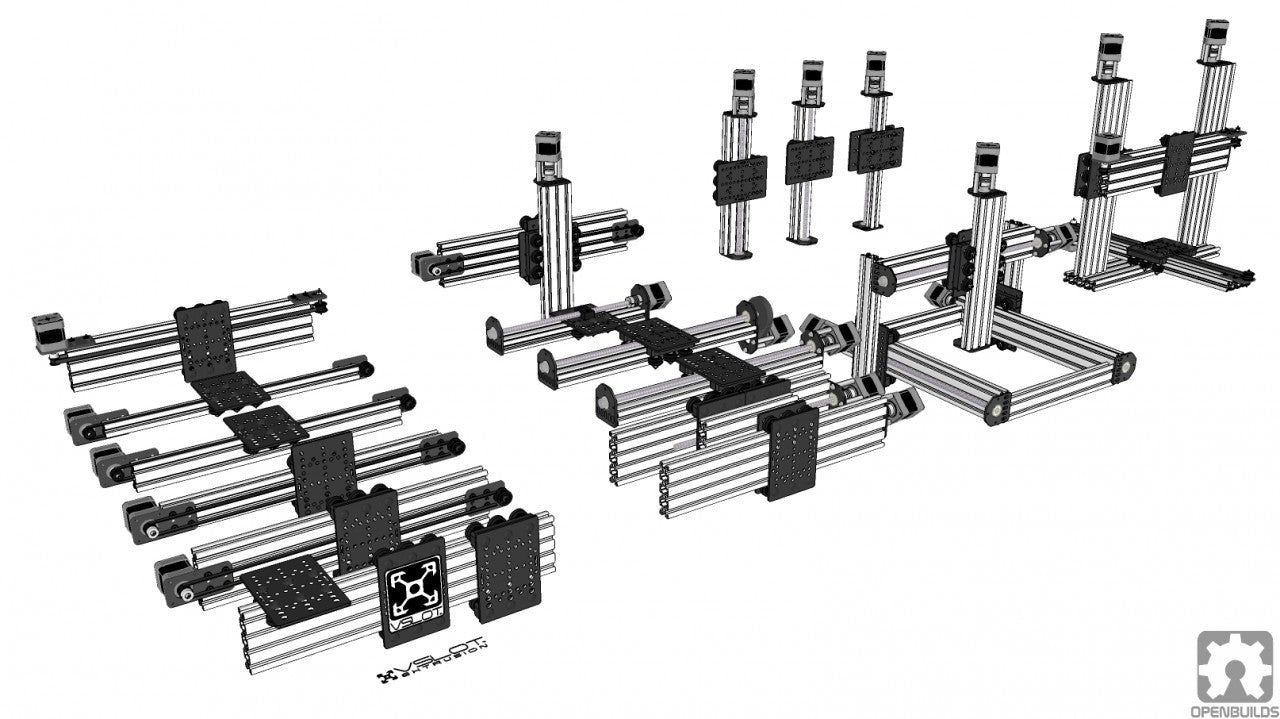

There are a lot of possible mounting configurations for this plate.

This design was inspired by Barton Dring of Buildlog.net

6063-T6 Aluminum
Black Anodized Finish
3mm~ (1/8") Thick

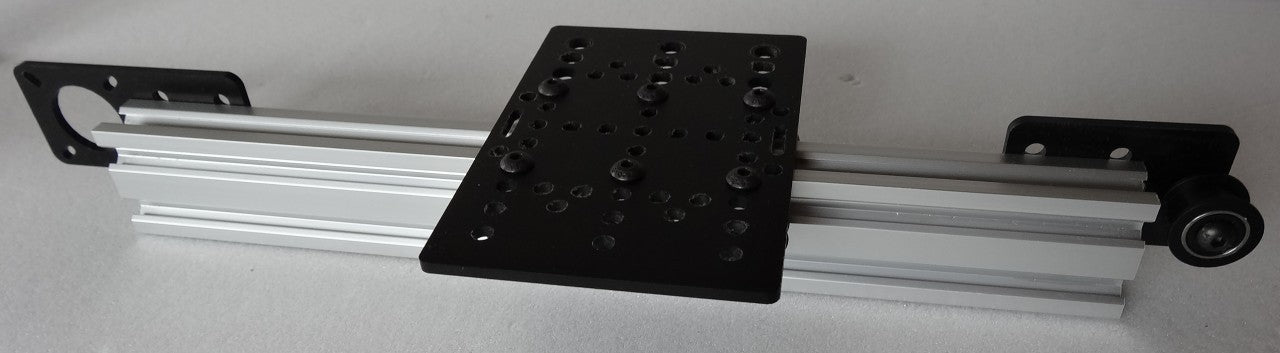

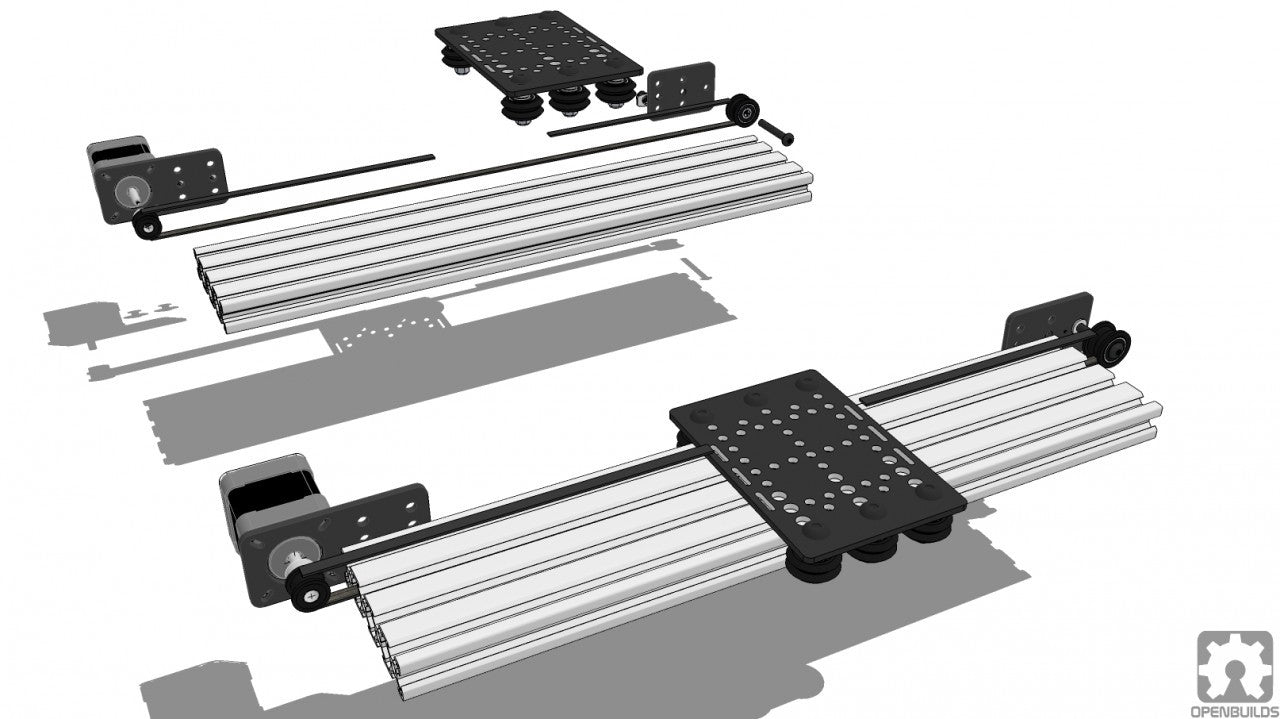

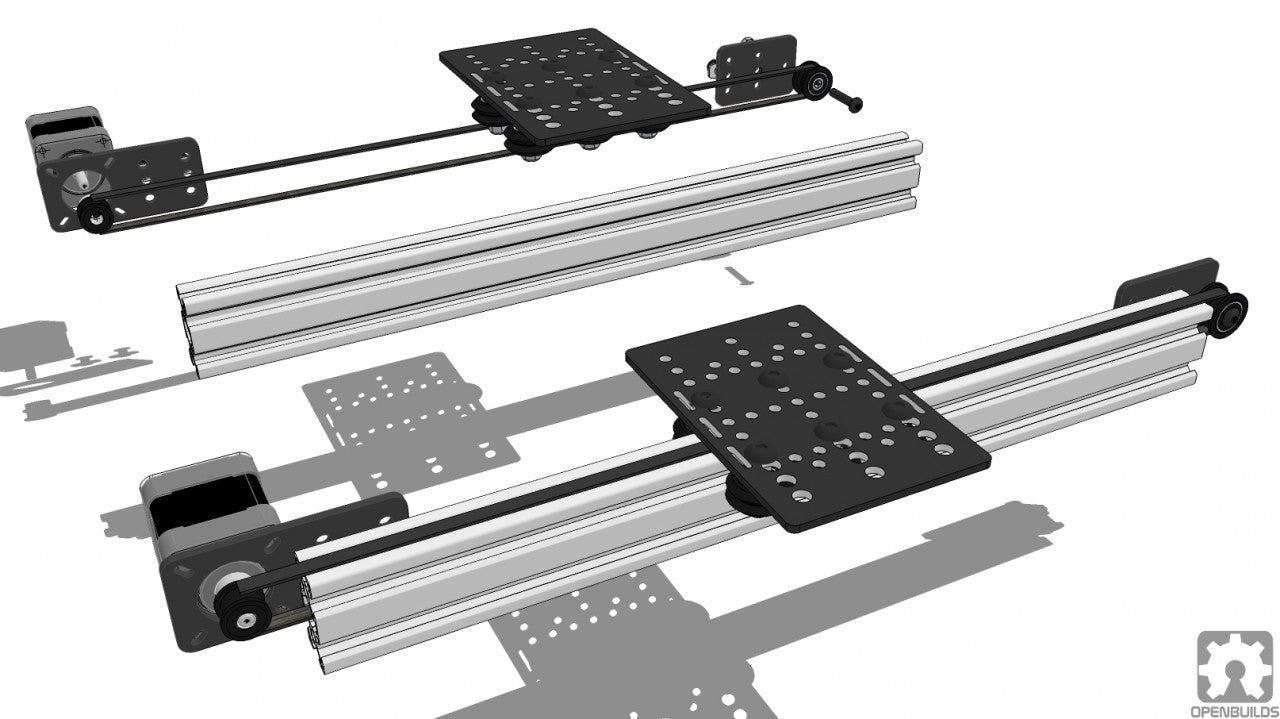

Belt Driven linear actuator example and Plate Models

Example Build
