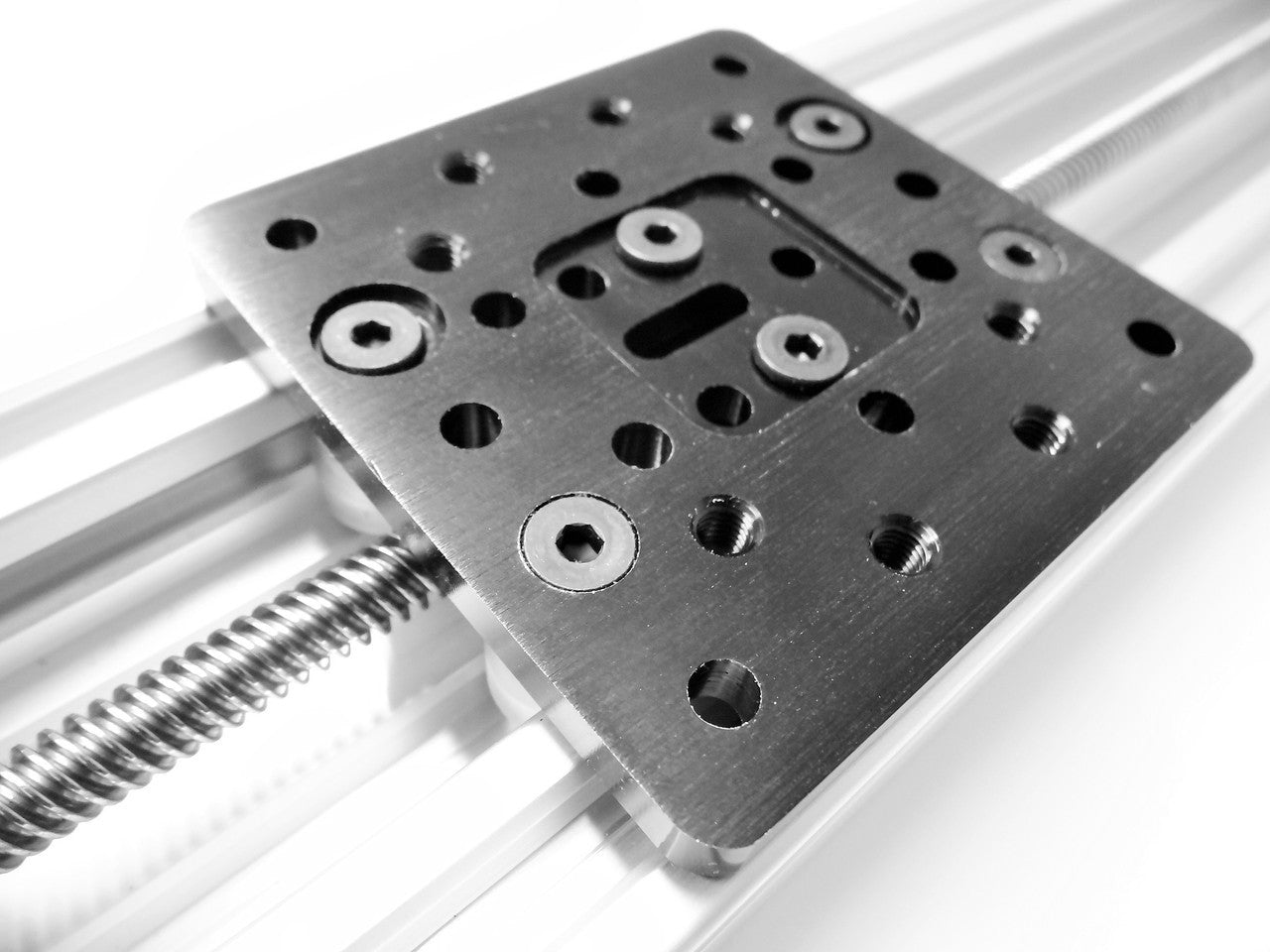

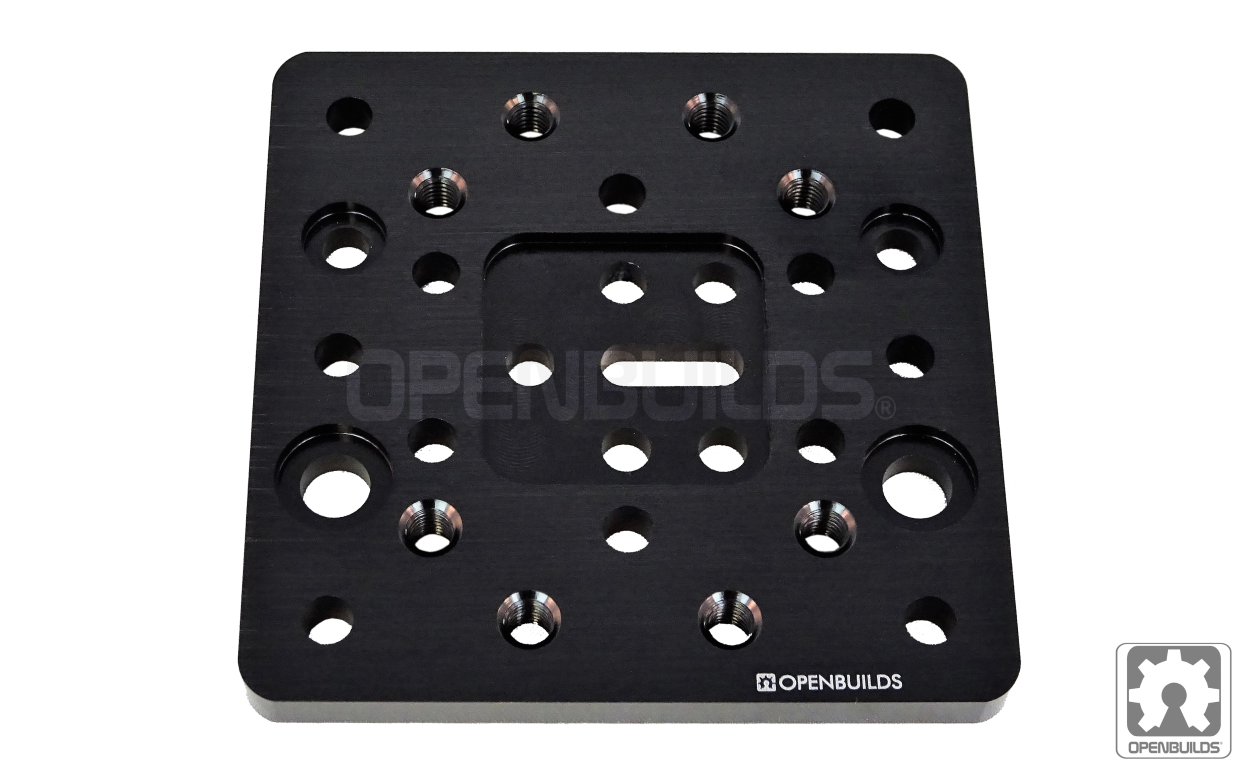

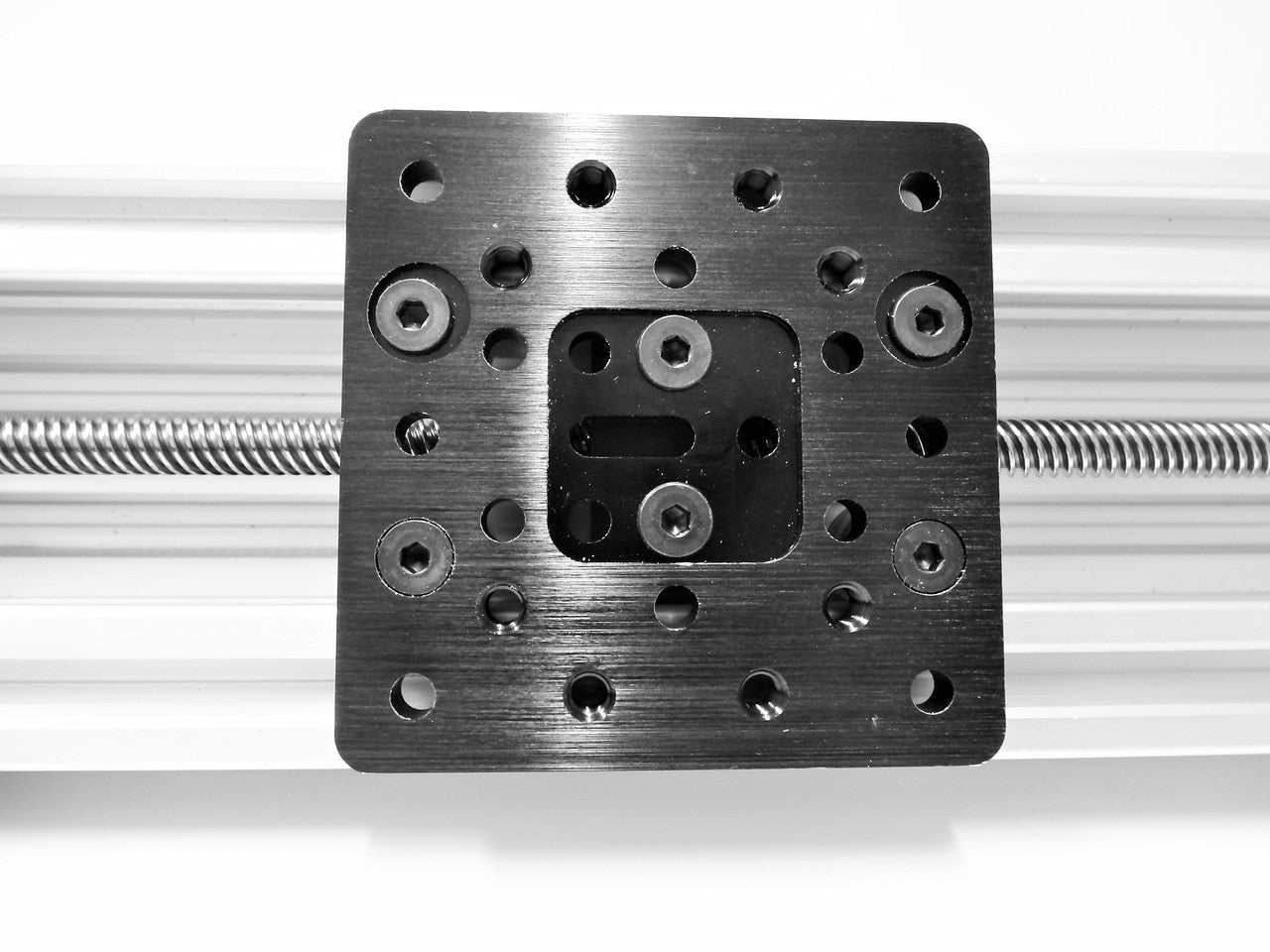

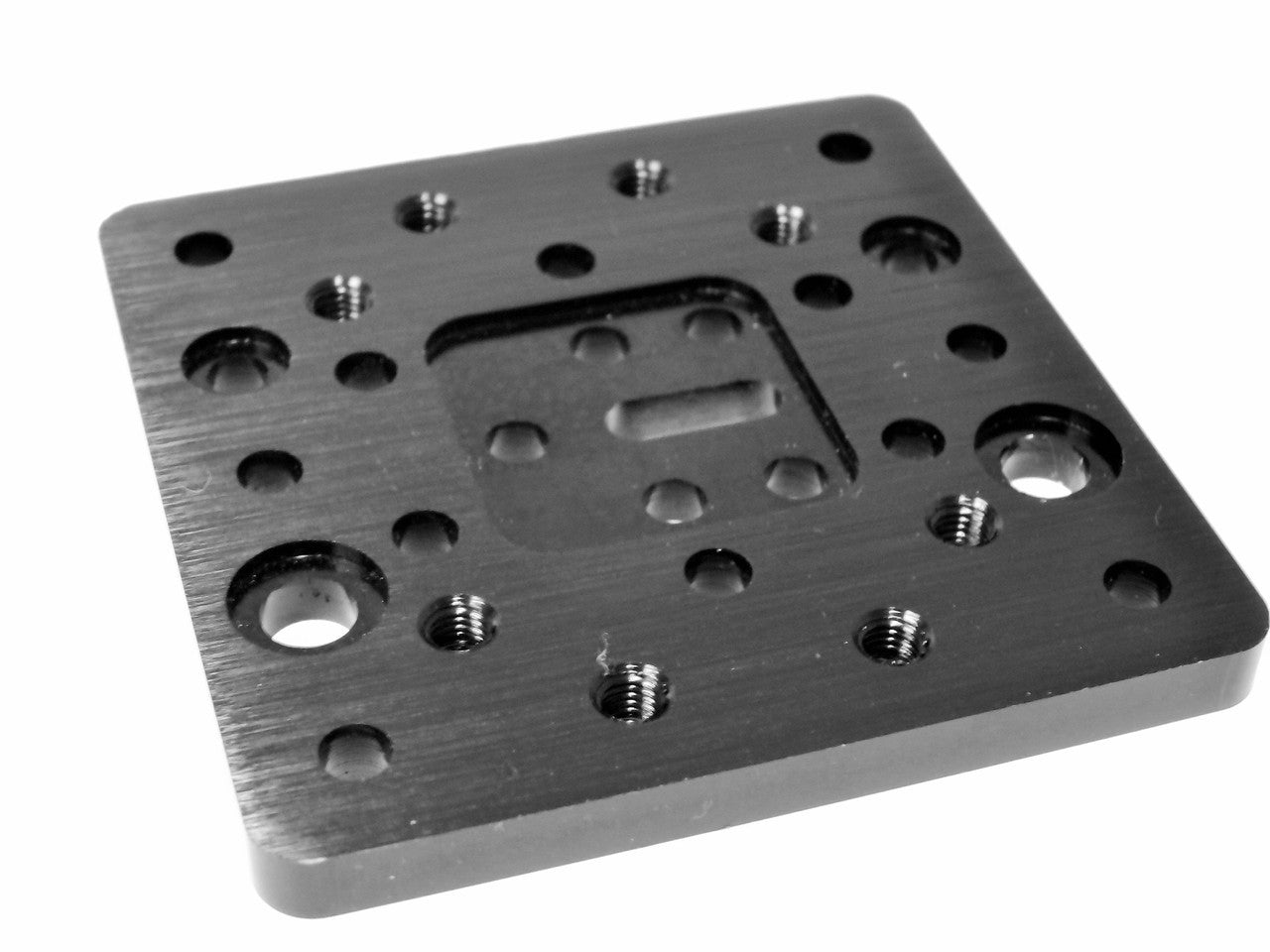

C-Beam Gantry Plate
A gantry plate designed specifily to give a clean and compact look while able to ride inside of the C-beam Linear Rail System using Mini V Wheels.
- - A strong 6mm thick aluminum 6061- T5 plate
- - Shiny black anodized for a finished look
- - Recessed screw pockets ensure flush mounts

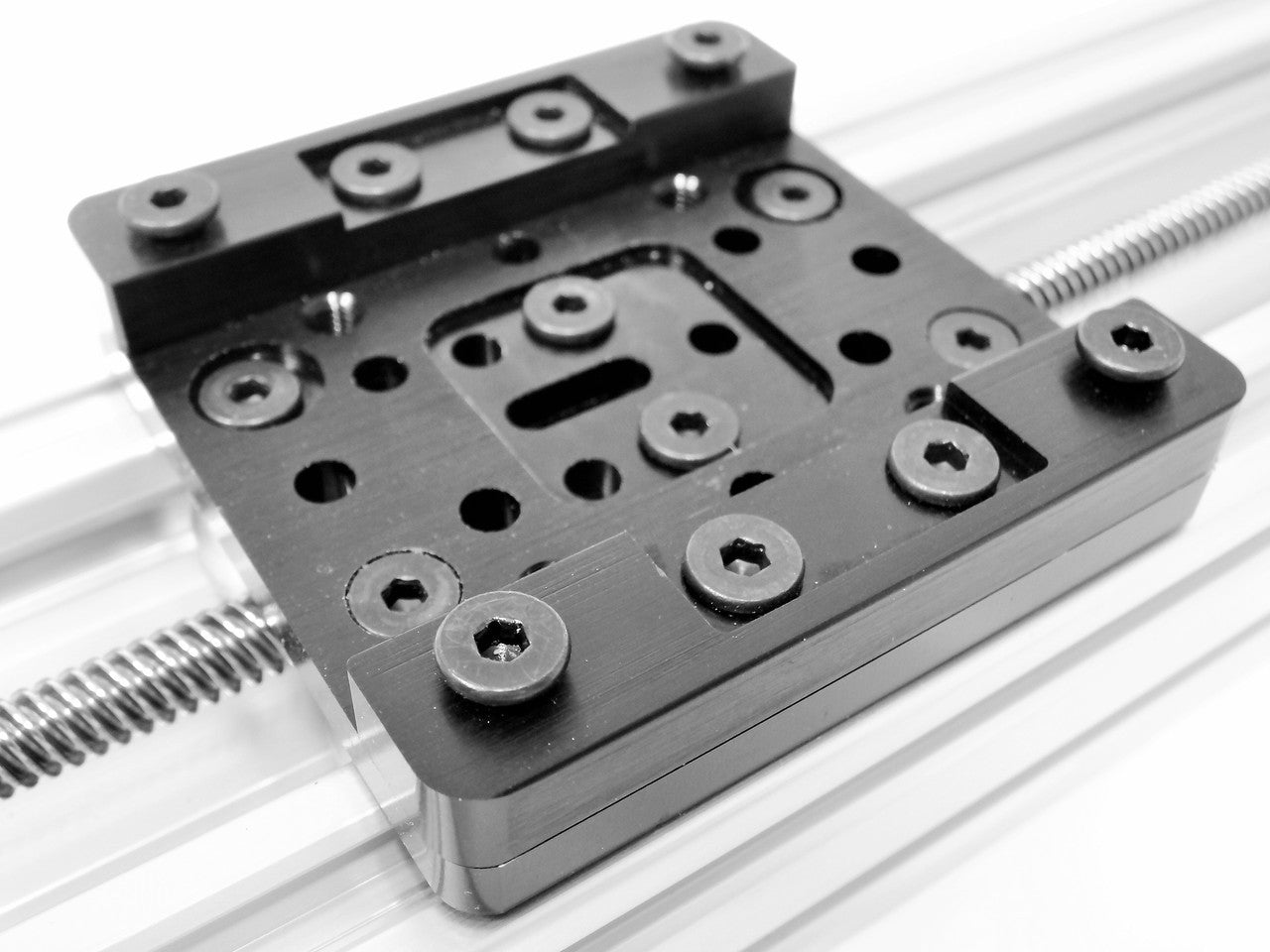

- - Includes pre-tapped mounting holes for C-Beam Riser Plates
- - Adjustable center hole mount allows for belt actuator configurations
Use in conjunction with either the Xtreme Mini Wheels or the Delrin Mini Wheels.
Be sure to download the Example C-Beam builds pack from OpenBuilds to use C-Beam in your own Builds!
Download Example Models
C-Beam Actuator example builds for inspiration and use in your own builds!
Models available in SketchUp and SolidWorks and other CAD formats
